Enhanced mcu development board atmel 89S51 emulator isp

What is for sale: Enhanced mcu development board atmel 89S51 emulator isp

---

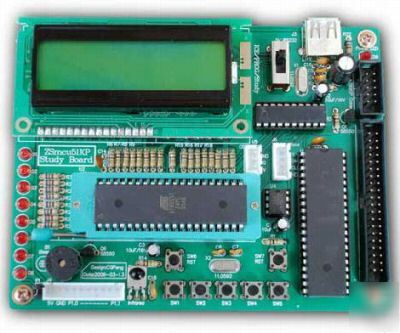

Enhanced MCU development board ATMEL 89s51 onboard Emulator+ISP+Programming
This product is designed for beginners microcontroller design and development of a learning and development board, and the actual number could be completed with the development of the single-chip microcomputer learning and examples to help beginners Quick Start SCM SCM technology.
E-professional school students, in order to complete some projects or school acquired knowledge into practical electronic works for future work to create better conditions for job-seekers, and this requires is a practical experience. Step by step, through their own installation components, circuit debugging, a number of experiments will be provided in accordance with from simple to complex, from the basic functions to achieve complete the expansion completed step by step, down-to-earth comprehensively improve the theoretical knowledge and practical ability.
"SCM learning development board enhanced version of the" integration test, programming, the three major functional simulation. No external AC power, USB-powered directly, the integration of new customized on-line USB + serial line, more than two meters in length, but also to facilitate more durable. Learning, the development of the 51 Series SCM tools to arguments..
* SCM learning development board enhanced version of the "integrated hardware simulation, the use of KEIL UV2 DEBUG environment and communications protocols, seamlessly compatible KEIL C51 programming debugging, and powerful. Online programming, full-speed, single-step, breakpoint debugging C51 high-level language / ASM source code compilation.
* SCM learning development board "adopted a new design of electronic circuits and programming firmware, can make use of learning board ZIF40P socket programming directly on the MCU can also use PIN board 10 socket connector to the target board ISP conducted online programming.
* PC-debugging features, the software can make use of computer-read and write online learning board AT24C02 memory content.
* Keil exclusive original programming debugging module, in the Keil environment, the compiler can be completed automatically download and run the SCM process can be carried out on AT89S51 and AT89S52 full-featured online programming and simulation in full swing.
* Original appliance remote reading function, we can use the computer terminal software, used to read out the data appliance remote control codes.
* Provide all resources, routines, the device specifications, complete circuit, and all the information needed to learn microcontroller programming easier for beginners.
* 8 LED (flashing lights, thrice, all kinds of tricks HEC).
* Four digital tube 7-segment (clock display, remote control codes, such as counting show.)
* 5 button (button scanning, interruption, counter).
* AT24C02 serial memory (I2C Bus Interface Experiment).
* Infrared remote-control receiver head (appliance remote control receiver, decoder).
* RS232 serial communication interface (for use MAX232 IC-level conversion experiments and computer communications).
* 16x2 character LCD module.
* Extended I2C serial communication interface.
* Expansion DS28B20 single communication interface.
* SCM eight P1 expansion interface (Extension all other experiments function).
* Simulation using KEIL UV2 DEBUG environment and communications protocols, seamlessly compatible KEIL C51 programming debugging, and powerful.
* Online programming, full-speed, single-step, breakpoint debugging C51 high-level language / ASM source code compilation.
* The simulation includes well-designed firmware. With KEIL ? Vision2 Debugger without the software, completed the loading process C51, single-step, breakpoint, full-speed operation functions
* Reservations P0, P1, P2, P3, all ports
* Simulation can be compatible with all 52 core MCU standard feature.
SCM of all reservations to avoid simulation normal and not normal practice replication chip issues.
* Monitoring procedures occupied users less resources, resources that do not require full-speed operation.
* 63K space procedures can be carried out at any time online updates.
Simulation using industrial-grade chips, strong anti-jamming capability level, the number of simulation can be equivalent to 100,000 times greater than KEIL UV2 DEBUG use of the environment and communications protocols, seamlessly compatible KEIL C51 programming debugging, and powerful.
* Intel HEX files to download online
* ASM assembly language support and C51 high-level language
* Online real-time simulation function DEBUG
* Intelligent anti-compilation of the content CODE
* Single-step operation can go to UV2 the serial data can be displayed in the window serial HEX value or string.
* Step implementation (SETP OVER)
* Set / removing breakpoints
* Run to the line where breakpoints or cursor
* Read / write Data District
* Read / write Area Code
* Read / write special register
* Atmel AT89C51, AT89C52, AT89S51, AT89S52, AT89C1051, AT89C2051, AT89C4051, AT89LV52, AT89S53, AT89LS53, AT89C55, AT89LV55
* Philips P80C54, P80C58, P87C54, P87C58, P87C524, P87C528
* Winbond W78C54, W78C58, W78E54, W78E54
* Intel i87C54, i87C58, i87L54, i87L58, i87C51FB, i87C51FC
* Temic 80C51, 80C52, 83C154, 83C154D, 89C51 and 87C52
* Siemens company C501-1R, C501-1E, C513A-H, 1R-C503, C504-2R
* ISSI IS80C52, IS89C51, IS89C52
* Dallas DS83C520 company, DS87C520
A motherboard (with simulation module)
