#9904 - dmg model dmf 250 cnc vertical machining center

What is for sale: #9904 - dmg model dmf 250 cnc vertical machining center

---

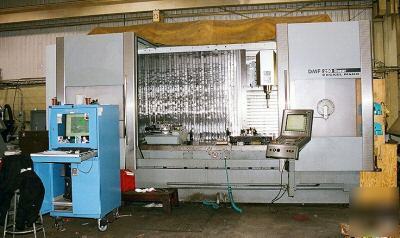

DMG MODEL DMF 250 LINEAR TRAVELING COLUMN CNC VERTICAL MACHINING CENTER WITH TILTING SPINDLE & ROTARY TABLE
Speed range continuously variable, max. 18,000 RPM
Working spindle, tool fitting HSU 63
Rapid traverse (X/Y/Z) 3,937.0/2,362.2/2,362.2 IPM
Precision P Max. 0.0004/0.0003/0.0003"
Direct measuring system for the linear axes Direct
Optional shelf-magazine (CAT50/HSK-A100) 120 (80) Units
Max. tool weight (CAT50/HSK-A100) 13.2 (26.5) lbs.
Diameter (CAT50/HSK-A100) 3.1" (4.5)
For free adjacent pockets (CAT50/HSK-A100) 5.1" (6.3)
Size of fixed table 122.0 x 35.4"
Heidenhain iTNC 530 CNC control:
- Shop floor or DIN-ISO programming
- Tool management with the context-sensitive help function
- CNC controlled B-Axis swivel head
- 32" Diameter CNC rotary table, C-Axis, 5,760 deg/min, 16 RPM
- Coolant thru spindle with filtration system
Work area dividing wall for pendulum machining
