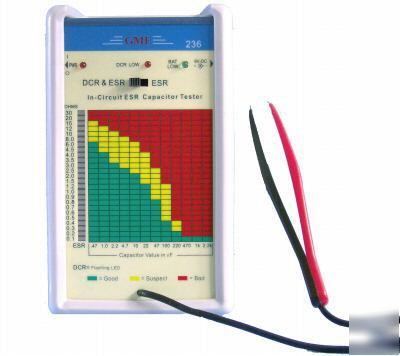

New in-circuit esr & dcr capacitor tester model 236

What is for sale: New in-circuit esr & dcr capacitor tester model 236

---

Manufacturer Website: http:// /index.html
Photobucket - Video and Image Hosting
This tester is designed to measure ESR (Equivalent Series Resistance) on capacitors range from 0.47µF to 2200µF, in or out of circuit. The ability to troubleshoot in-circuit saves valuable time, making the 236 a must for anyone that tests or troubleshoots PCB (printed circuit boards). The 236 is microprocessor controlled and automatically discharge capacitor under test. It features a 100 kHz output test frequency. Using a low 15 mV peak-to-peak output test voltage, the 236 will not turn on any solid state devices during testing for accurate test result. It also checks for low DCR (DC resistance).
♦ In-Circuit ESR & DCR testing
♦ Test capacitors range from 0.47µF to 2200 µF
♦ One-handed tweezers test probe
♦ Automatic discharges capacitor under test
♦ AC adaptor power source or standard 9V battery operation
♦ Ideal for on-the-bench and in-the-field testing
♦ Easy to use, lightweight, and portable
♦ Dimension: 3.8" x 5.7" x 1.5"
