Brown & sharpe 6" X18" 3-axis hydraulic surface grinder

What is for sale: Brown & sharpe 6" X18" 3-axis hydraulic surface grinder

---

http:// /images/islogo_lg.gif

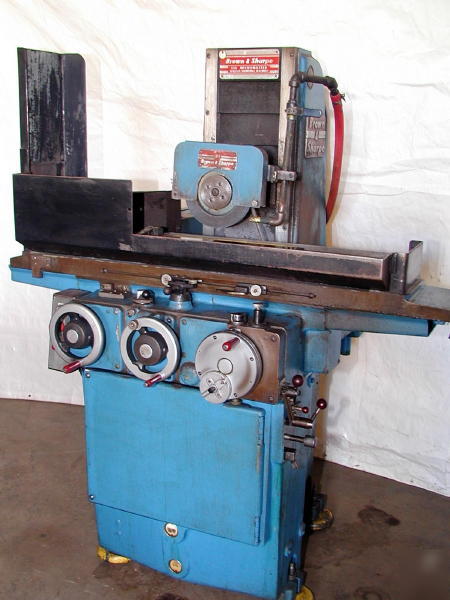

Brown & Sharpe 6" x18" 3-Axis Hydraulic Surface Grinder
Brown & Sharpe 6" x 18" 3-Axis
Serial No. 523-6181-1468, New 1962
This machine is equipped with
Incremental Power Down Feed
for both surface grinding and
slot grinding applications.
Grinding Capacity: 6" x 18"
Max. Grinding Wheel Size: 8" Diameter x 1" Width
Max. Dist. Spdl. Ctr. to Table Top: 19"
Vertical Feed Rate, Variable: .0002" to .003"
Max. Feed Distance Using Positive Stop: .040"
Longitudinal Table Feed Rate, Variable: 5 to 100 FPM
Crossfeed Feed Rate, Variable: .01" to .25"
Wheel Truing Crossfeed Rate: 12 FPM
Machine Weight, Approx.: 2850 Lbs.
Incremental Power Downfeed Attachment
Antifriction-Bearing Spindle w/ Oriflex Drive
Feed Interlock Handle for Slot Grinding
6" x 18" Permanent Magnetic Chuck
Automatic Hydraulic Cross Feed
Operation & Maintenance Manual
1 HP Oriflex Spindle Drive 230/460/3/60
All Items Subject to Prior Sale
Be Sure to Verify Specs & Condition Prior to Purchasing
