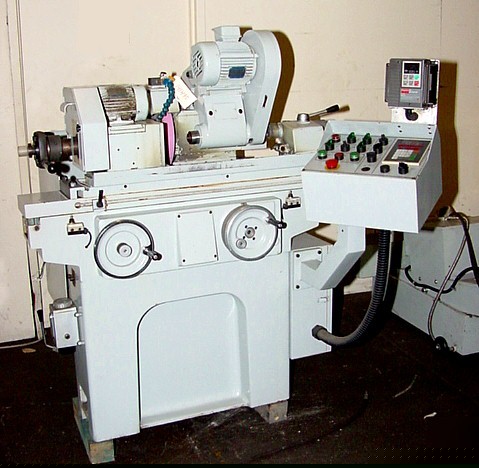

8" OD GRINDER, Supertec G-10P40C PLC AUTO INF
8" OD GRINDER, Supertec G-10P40C PLC AUTO INF
8" X 20" SUPERTECH I.D./O.D. CYLINDRICAL GRINDER
MODEL: G-10P40C S/N: G-20001 NEW: 2003
SWING .......................................... 8"
DISTANCE BETWEEN CENTERS ....................... 20"
POWER TABLE TRAVERSE, THREE SPEEDS .. 67", 108" & 211" IPM
SWIVEL TABLE GRADUATED .................. +/- 8 DEGREES
WHEEL SPEEDS (2) ........................ 1620 & 1960 RPM
WHEEL SIZE (DIA. X WIDTH X BORE) ...... 12" X 1" TO 2" X 5"
WHEELHEAD MOTOR ................................ 2 HP
AUTOMATIC WHEELHEAD INFEED ............ 0.0001" TO .004"
WORKHEAD SWIVELS (LEFT & RIGHT) ...... ..... 45 DEGREES
WORKHEAD SPINDLE SPEEDS (4) ...... 150, 264, 356 & 480 RPM
WORKHEAD CENTER TAPER . ......................... #3 MT
WORKHEAD MOTOR ................................. 1/4 HP
QUILL TRAVEL ..................................... 1"
SPINDLE TAPER ................................... #2 MT
APPROXIMATE WEIGHT .......................... 2,420 LBS
APPROXIMATE DIMENSIONS ............. 60"L X 42"W X 52"H
SWING DOWN INTERNAL GRINDING ATTACHMENT W/SPINDLE
"MITSUBISHI" PROGRAMMABLE AUTO INFEED CONTROL
-AUTO INFEED @ TABLE REVERSALS
-AUTO PLUNGE FEED (COARSE & FINE FEED SELECTION)
-WHEELHEAD RETRACTS TO ORIGINAL POSITION AUTOMATICALLY
AFTER CYCLE COMPLETION OF GRIND CYCLE
QUICK ACTING LEVER-TYPE DRAWBAR (5C COLLETS)
CARRIAGE AND WHEELHEAD WAYS ARE AUTO LUBRICATED
MACHINE MOTORS ARE WIRED FOR 3/60/230-460 VOLT OPERATION
* * ORIGINAL "AS NEW" CONDITION * *
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
Machine Location: HARRISON, NJ
