Hp 8510C network analyzer w/ 8515A & 85053B ver kit

What is for sale: Hp 8510C network analyzer w/ 8515A & 85053B ver kit

---

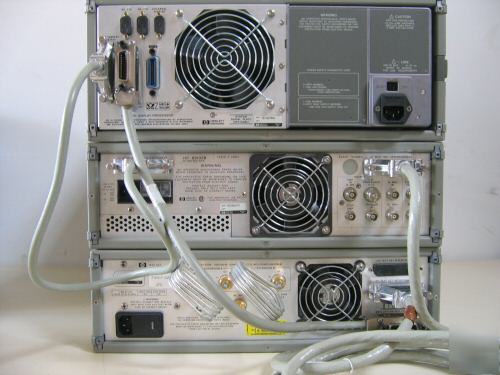

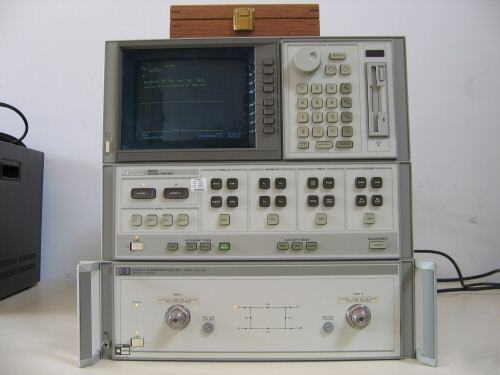

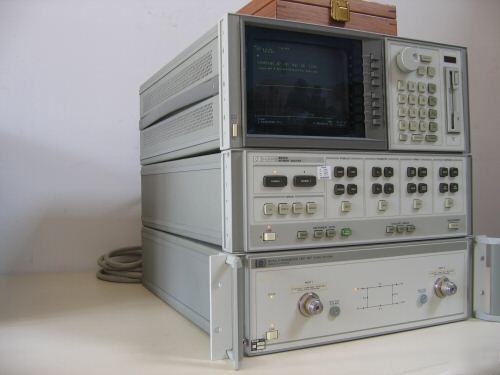

HP 8510C Network Analyzer with 8515A S-Parameter Test Set and 85053B Verification Kit
* Description: The 8510C Vector Network Analyzer makes broadband measurements from 45 MHz to 50 GHz in 2.4 mm coax, from 45 MHz to 65 GHz in 1.85 mm coax and from 33 GHz to 110 GHz in waveguide bands. The 8510C network analyzer measures the magnitude, phase and group delay of two-port networks to characterize their linear behavior. Optionally, the 8510C network analyzer is also capable of displaying a network's time domain and response to an impulse or a step waveform by computing the inverse Fourier transform of the frequency domain response.(Requires test set - included). Features include:
* 45 MHz to 50 GHz / 110 GHz
* Thru-Reflect-Line precision two-port calibration for coaxial measurements
* Line-Reflect-Match calibration for on-wafer and in-fixture applications
* Internal "adapter removal" feature for measuring noninsertable devices with exceptional accuracy
* Four S-parameter color display
* Data storage on an internal 3.5 disk drive or data output to a GPIB or serial (RS-232) plotter or printer
* The HP 8515A S-Parameter Test Set allows broadband coaxial measurements from 45 MHz to 26.5 GHz. The 8515A has an architecture that develops a separate reference channel for each incident port. RF switching is done with a built-in electronic switch. For active device measurements, the test set includes the ability to apply dc bias (external) to the test port center conductors.

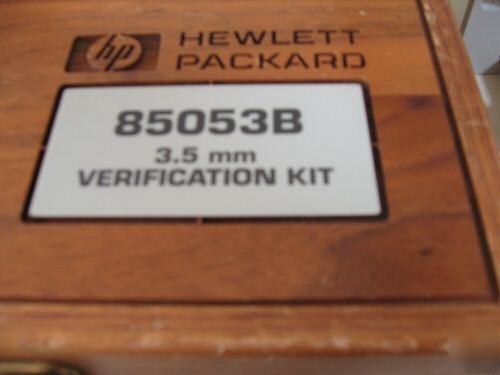

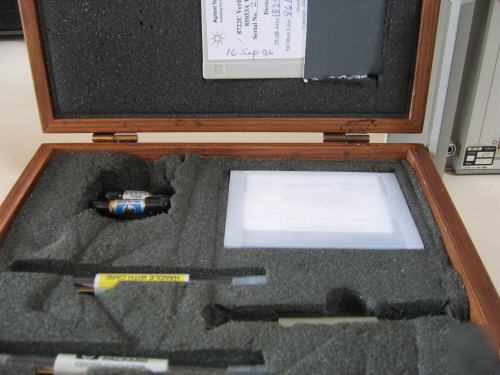

* The 85053B verification kit has a 3.5 mm connector and covers a frequency range of 300 kHz to 26.5 GHz. The 85053B supports the Agilent 8510, 8719/20/22, and PNA series of network analyzers. This kit includes a 7.5 cm airline, stepped impedance airline, 20 dB and 40 dB attenuators.

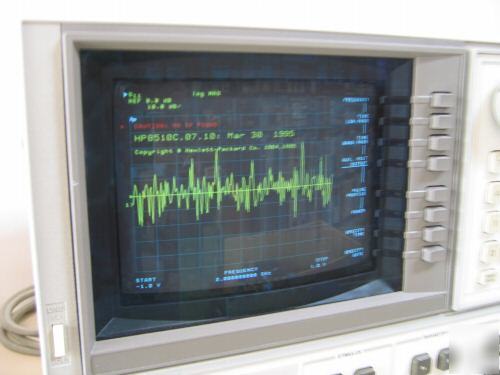

* Cosmetic Condition: Very Good. Note that the CRT is excellent, but in the pictures is hard to see because my camera was picking up a lot of glare
* Working Condition: Presumed Good but Untested. Calibration is available for additional charge. Please inquire.
* Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details).
We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent.
