THS7530 var gain amp 300MHZ fully differential opamp (4

What is for sale: THS7530 var gain amp 300MHZ fully differential opamp (4

---

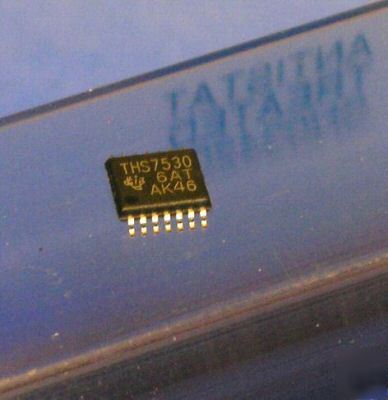

Qty: 4 THS7530 ID 14 Pin HTSSOP
High Speed, Very Low Noise, Fully Differential,
Continuously Variable Gain Amplifer
Burr-Brown / Texas Instruments.
Low Noise: Vn = 1.1 nV/rtHz, Noise Figure = 9 dB
- HD2 = -65 dBc, HD3 = -61 dBc at 32 MHz
- IMD3 = -62 dBc, OIP3 = 21 dBm at 70 MHz
Continuously Variable Gain Range: 11.6 dB to 46.5 dB
Fully Differential Input and Output
Output Common-Mode Voltage Control
Time Gain Amplifiers in Ultra Sound, Sonar, and Radar
Automatic Gain Control in Communication and Video
System Gain Calibration in Communications
Variable Gain in Instrumentation
The THS7530 is fabricated using Texas Instruments’ state-of-the-art BiCom III SiGe complementary bipolar process. The THS7530 is a dc-coupled wide bandwidth amplifier with voltage-controlled gain. The amplifier has high impedance differential inputs and low impedance differential outputs with high bandwidth gain control, output common mode control, and output voltage clamping.
Signal channel performance is exceptional with 300-MHz bandwidth, and third harmonic distortion of -61 dBc at 32 MHz with 1 VPP output into 400 ohm.
Gain control is linear in dB with 0 V to 0.9 V varying the gain from 11.6 dB to 46.5 dB with 38.8-dB/V gain slope.
Output voltage limiting is provided to limit the output voltage swing, and prevent saturating following stages.
The device is characterized for operation over the industrial temperature range: -40°C to 85°C.
US: $3.75 Canada: $4.50 International: $5.50 Lowest cost option.
2-nd item: S&H 75% less than first (or 25% of first)
items 3-5: S&H 80% less than first (or 20% of first)
items 6-10: S&H 90% less than first (or 10% of first)
