Baytech M9 dac data aquisition control 9 slot

What is for sale: Baytech M9 dac data aquisition control 9 slot

---

BAYTECH M9 DAC DATA AQUISITION CONTROL 9 SLOT
click on images below to enlarge

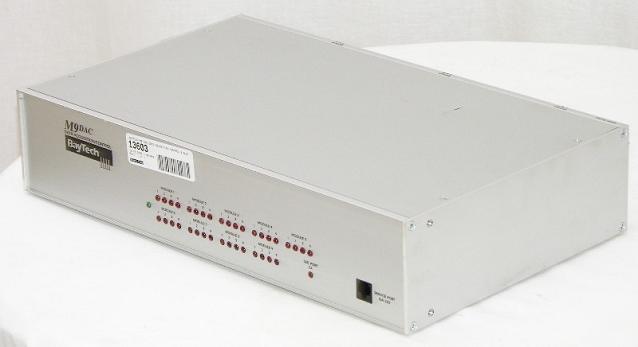

The M9 DAC (Data Acquisition/Control) system has 9 plug-in module slots.
This one has a V71 DAC and a V75 DAc module installed.
The service port or optional service modem can be used for configuration, remote configuration and diagnostics.
Housed in a 425 * 254 * 81 mm chassis, the M 9 DAC will fit into two standard panel units of a 19" rack.
9 Plug-in module slots. Desk top or 19" rack mount compatibility.
Service Ports: RJ-45:EIA-232 Fixed configuration: 9600 baud, 8 bit word, no parity and one stop bit.
RJ-11: Modem (2400 bps).(Option) Remote ring detect unit reset.
Time of day: Year/month/day/hour/minute/second/milli sec.
Configuration: From service port or host module. Software: On board. Non-volatile memory.
Indicators: 1 green: Power-up. 1 red: Activity: for each port.
Power: Voltage: 14-18 VAC, 12-24 VDC. 0,60 A Max. 220 V - 50 Hz. Wall adapter.
Dimensions: 425 * 254 * 88 mm. Weight 3, 5 k.
Environment: Operating temperature range: 0 to 70 °C. Humidity: 5 to 95 % RH.
