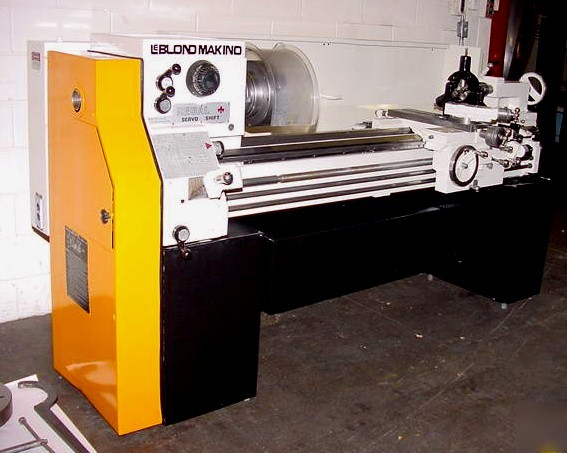

15" x 54" LeBLOND-MAKINO INCH/MM ENGINE LATHE w/TAPER
15" x 54" LeBLOND-MAKINO INCH/MM ENGINE LATHE w/TAPER
15" x 54" LEBLOND-MAKINO SERVO SHIFT ENGINE LATHE
MODEL: 15" REGAL, S/N: 14C-1149 NEW: 1986
SWING OVER BED .................... 15-1/2"
SWING OVER CROSS SLIDE ............ 9-1/2"
DISTANCE BETWEEN CENTERS .......... 54"
SPINDLE NOSE ...................... L-1 THREADED
HOLE THRU SPINDLE ................. 2-17/64"
SPINDLE SPEED RANGE (12) .......... 45 - 1800 RPM
LONGITUDINAL FEED RANGE (48) ...... .0018" - .104" IPR
CROSS FEEDS HALF THE VALUES OF LONGITUDINAL
THREADING RANGE ENGLISH (48) ...... 2 - 112 TPI
THREADING RANGE METRIC (40) ....... 0.25 - 14 mm
TAILSTOCK SPINDLE TRAVEL .......... 5"
TAILSTOCK SPINDLE TAPER ........... #4 MT
APPROX WEIGHT ..................... 3,300 LBS
APPROX DIMENSIONS ................. 104"L x 40"W x 51"H
STEADY REST WITH ROLLER & PLAIN TIPS
TRAV-A-DIAL FOR LONGITUDINAL CARRIGE TRAVEL
JACOBS DRILL CHUCK FOR TAILSTOCK
COOLANT SYSTEM WITH REMOVABLE CHIP PAN
HARD & GROUND REPLACEABLE BEDWAYS
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
Machine Location: HARRISON, NJ
