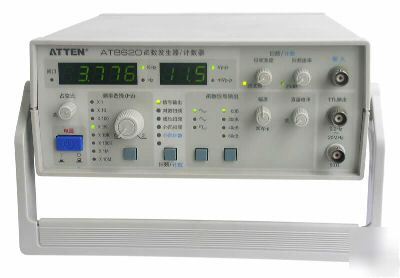

AT8620B Function Signal Generator
MAIN FEATURE:1). It's convenient to operate and use with high intelligence for using the single microprocessor to control running and displaying.2). Large scale single integrated accuracy function generator leads to super performance.3). Designed by large scale integrated circuit to insure the high reliability and high stability.2. TECHNICAL PARAMETER 1). Output frequency Frequency range: 0.2Hz~20MHz ; eight ranges 0.2Hz-2Hz 2Hz-20Hz 20Hz-200Hz 200Hz-2kHz 2kHz-20kHz 20kHz-200kHz 200kHz-2MHz 2MHz-20MHz 2). Output signal impedance: 600 oma 3). Output signal wave-form:sine wave, square wave, rectangle wave, sawtooth wave and triangle wave4). Output signal amplitude (peak-peak value): non-attenuate (1Vp-p~10Vp-p)±10% continuously adjustable attenuate 20dB (0.1Vp-p~1.0Vp-p)±10% continuously adjustable attenuate 40dB (10mVp-p~100mVp-p)±10% continuously adjustable attenuate 60dB (1mVp-p~10mVp-p)±10% continuously adjustable The above are measured with load 1M the output signal amplitude will be half of standard at 50load. 5). Function output symmetry adjust scope: 20%~80% (±10%)6). Output signal features: a) sine wave distortion:<2% b) triangle wave linear:>99% (10%-90% of output amplitude) c) square wave rise edge times: less than 17nS (10%-90% of output amplitude) d) square wave fall edge times: less than 17nS e) square wave rise and fall pulse less than or equal to 5%Vo (50 load). f) Test condition: frequency output: 10KHz, amplitude: 5Vp-p,warm-up for 10minutes. g) TTL output "0" level <=0.8v "1" level >= 3v;7).Output signal frequency stability: less than ±0.1%/min (test condition is the same as the above)8). Amplitude display (only for 50 load, at 1M load, the real output amplitude is double of the displaying value): a) Display digits:2/3 digits (decimal point automatic select place). b) Display units: Vp-p or mVp-p. c) Display errors: Vo±10%±1d (Vo refers to the true value of output signal) d) Resolution: non-attenuate 1Vp-p 20dB attenuate:0.1Vp-p 40dB attenuate:10mVp-p 60dB attenuate:1mVp-p9). Frequency display: a) display range: 0.2Hz-20MHz b) display effective digit: four or five digits.10). Measurement errors: <=0.5%11). Time base: frequency: 12MHz frequency stability:±5x10-512). Working temperature: 0 ~40 C13). Size: 270mm x 215mm x 100mm14).weight: approx. 2kg.15).Power applicability and consume: 110V/220V±10% 50Hz/60Hz±5%, power consume <=30W
All our AT serial RF Signal Generators are provided one year warrantee by us from the date you make a purchase. An replacement or repairment will be provided by us for free when a faulty is developed within the warranty.
Note: please leave contact phone number ,so we can smooth and fast delivery.
