2HP submersible water pump, deep bore well, pump only

What is for sale: 2HP submersible water pump, deep bore well, pump only

---

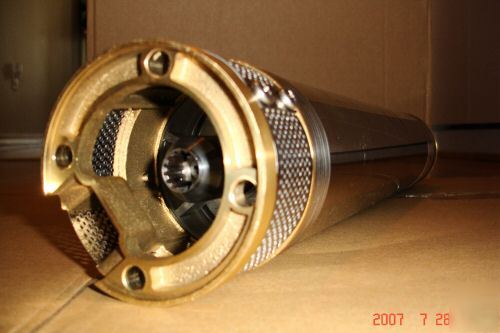

This pump is compatible to Franklin 2HP Motor. It also fit most of the 2HP Motor that are made with NEMA standard. (see photo for the screws' location)

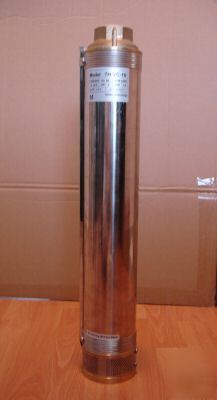

On display is a Brand new, in box, Clear Water, Deep Bore Well 4" Pump, without a motor. This pump fit 4" Drilled, Bore Well, It also can be used in a clean water Lake with sand content less than 150gram/meter³

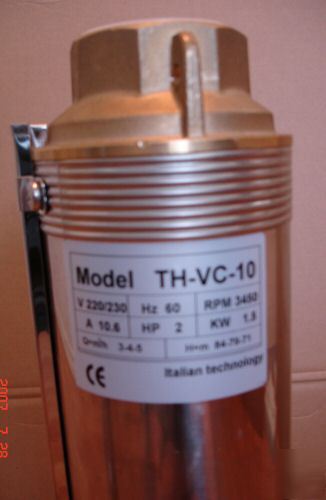

TH-VC-10 Specifications: (Pump only, not including Motor)
l Just slightly under 4”Diameter(95mm),meet industrial standard
l Stainless steel housing and shaft.
l 10 Stages, Water outlet 1 1/2”(1.5 inch)
l Brass Outlet with Build-in Check Valve
l Max Head 300 feet(92 meters)

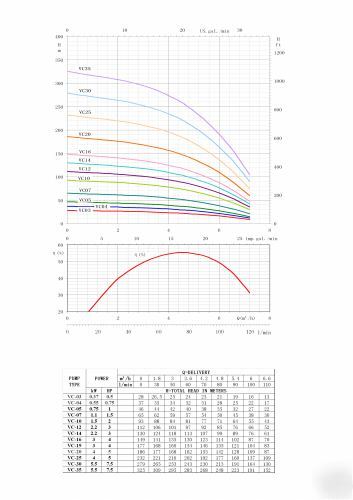

l Flow at typical depth: 30Gpm @ 120ft, 26Gpm @ 180ft, 22Gpm @ 230ft, 17Gpm at 260ft, 13Gpm @275ft
l Confirm to international standard of IEC34-ICE
This series of pumps are multistage centrifugal pumps designed for permanently immerse operation. The motor is connected to the pump by means of a support designed in accordance with NEMA standard. The impeller, supported by the motor shaft, rotates inside vane diffusers which
transfer the liquid leaving each impeller towards the suction opening of the next. Once the liquid has passed through the impellers, it is expelled
via the delivery opening. Each impeller and its respective vane diffuser constitutes a pumping stage which, according to the operating principle of
centrifugal machines, generates a pressure increase in the fluid that added to each subsequent pressure increase induced by the other stages in series.
These pumps are suitable for pumping clean water and fluids with a sand content of less than 150g/cbm. Their high performance and
working dependability make them suitable for civil use and different industrial uses, such as automatic distribution of water in conjunction
with surge tanks, irrigating gardens, in washing and pressure-boosting systems and fire-fighting purposes.
