34"/44" x 120" LANSING GAP BED IN/MM ENGINE LATHE, 1982
34"/44" x 120" LANSING GAP BED IN/MM ENGINE LATHE, 1982

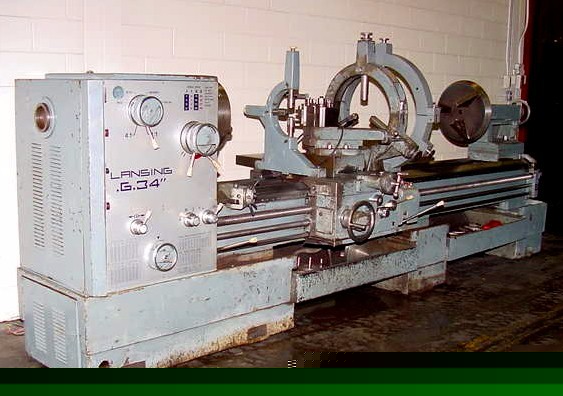

34"/44" x 120" LANSING GAP BED LATHE
MODEL: G34, S/N: 14779, NEW: 1982
SWING OVER BED WAYS ................. 34"
SWING IN REMOVABLE GAP .............. 44"
LENGTH OF GAP ....................... 17"
SWING OVER CROSS SLIDE .............. 25-1/2"
DISTANCE BETWEEN CENTERS ............ 120"
HOLE THRU SPINDLE ................... 4-1/4"
SPINDLE NOSE CAMLOCK ................ D1-11"
WIDTH OF BED ........................ 19-5/8"
SPINDLE SPEED RANGE (16) ............ 13 - 1000 RPM
LONGITUDINAL FEED RANGE ............. .00543" - .08160"
CROSS FEED RANGE .................... .00232" - .03448"
INCH THREADING RANGE ................ .25 - 120 TPI
METRIC THREADING RANGE .............. .25 - 112 mm
TAILSTOCK QUILL DIAMETER ............ 3-3/4"
TAILSTOCK SPINDLE TRAVEL ............ 12"
TAILSTOCK SPINDLE TAPER ............. #6MT
APPROXIMATE FLOOR SPACE ............. 200"L x 42"W x 59"H
APPROX WEIGHT ....................... 14,500 LBS
19" CAPACITY ROLLER STEADY REST
24" CAPACITY ROLLER STEADY REST
QUICK CHANGE TOOLPOST WITH HOLDERS
25 HORSE POWER 220/440 VOLT MAIN MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
CONDITION: **** EXCELLENT ****
Machine Location: HARRISON, NJ
