3.0M usb pc camera, 3.5-90X stereo boom microscope+lite

What is for sale: 3.0M usb pc camera, 3.5-90X stereo boom microscope+lite

---

Superior optics! Unbeatable low price! Five-year warranty! Huge selection - more than 2,000 listings!
Check this box if search in titles & descriptions

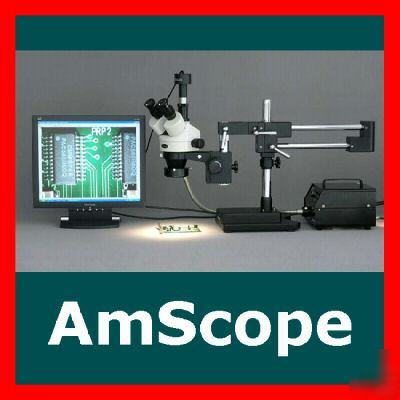

This is a turnkey package with a stereo inspection microscope and digital image system. It includes a trinocular 3.5-90X zoom microscope, a 150-Watt fiber optic ring illuminator, and a 3.0 Mega pixel high resolution USB digital camera. It gives sharp, crystal clear images with high resolution. It is a complete inspection system for industry applications. The digital camera captures microscope images and displays full-screen live video on your computer. It is of 3.0 Mega pixel resolution and is compatible with Windows 2000/XP/VISTA. It has a built-in reduction lens and gives the same field of view on your PC screen as that seen through the eyepieces. With the user-friendly software included, you can edit microscope images, conduct measurements across the images, record videos, email images or save them as BMP, TIFF, JPG, PICT, PTL or other files. You can measure distances, angles, areas and etc. The zoom microscope is on a versatile double-arm boom stand that allows you to turn the microscope head around three different axis (x, y, and z), allowing you to point the microscope head toward to ANY direction. This microscope comes with two pairs of 30mm super widefield, high-eyepoint eyepieces (10X & 20X) and a 0.5X Barlow lens. It offers extremely large zoom magnification range (26:1) and large working distance (8"). The ring illuminator includes a 35"-long metal-sheathed fiber optic cable and a 150Watt halogen light source with intensity-adjustable controls. It provides even, cool and bright illumination. This package is an ideal instrument for research labs, gemologists and anyone in semiconductor or electronic industry. This microscope is brand new in factory sealed box.
Brand Name: AmScope Model No: SM-4TZ-FOR-3MB Retail Value: $4,000
Click on Pictures for Larger View
This microscope is manufactured under the strict guidelines
established under ISO 9001: 2000 Standards.
Certificate number: 3302/200213192.
Just from looking at the eyepieces, you can tell the quality of the optical system of our microscopes. We offer you super widefield high-eyepoint WF10X/20 eyepieces (where 10X/20 means 10X magnification power and 20mm field of view) while other sellers give you only WF10X eyepieces (no specification on the field of view implies it is less than 18mm). Here is the difference as shown in the picture below - our competitors' eyepieces are on the left, and our eyepieces are on the right:
Click on Pictures for Larger View
SUPER WIDEFIELD HIGH-EYEPOINT EYEPIECES!
Click the button below to bookmark this item (IE only. Firefox user press "Ctrl+D").
Find it later under "Favorites" menu in your browser.
* A great microscopy turnkey package with color digital image system.
* Trinocular zoom microscope with high quality super widefield of view.
* Capturing microscope images and displaying real-time video on your PC screen.
* Showing full-screen live video images.
* Saving microscope images as BMP, TIFF, JPG, PICT, PTL or other files.
* Editing, saving and emailing microscope images.
* Conducting measurement across microscope images.
* Measuring distances, angles, areas and etc.
* 3.0 Mega (1280x1024) pixel high resolution full-screen images.
* User-friendly software compatible with 2000/XP/VISTA.
* Built-in reduction lens giving the same field of view images on your PC screen as those seen through eyepieces.
* Easy USB2.0 connection, installation and operation.
* 3.5x-90x extremely large zoom magnification range.
* Versatile double-arm boom stand covering large working area.
* Double-Arm Design for 3-Degree Freedom.
* Able to Place Microscope Head Toward to Any Directions.
* 45° inclined trinocular head with SUPER widefield high-eyepoint eyepieces.
* SUPER widefield 30mm WF10X/20 eyepieces (10X power and 20mm field of view - see the difference in the above picture).
* High resolution optical system with great flatness and contrast.
* Erect stereo sharp images over a wide field of view.
* Crystal clear original true color microscope images.
* Dual eye tubes with adjustable diopter.
* Accurate alignment ensuring a fatigue-free long time viewing.
* Adjustable interpupillary distance.
* Full optical glass elements
* Precise ground glass lenses
* Double-arm design for 3-degree freedom.
* Able to place microscope head toward to any directions.
* Extremely large working distance up to 8" (200mm).
* Sturdy cast steel boom stand finished with stain-resistant enamel.
* Full metal chrome-plated mechanical components
* 150W variable-intensity fiber optic light source.
* High intensity 21V,150W halogen bulb.
* Perfect even Quartz halogen illumination without heating.
* Forced air cooling system.
* 3200 degrees Kelvin lamp color temperature.
* Rubber eyeguards included.
* Manufactured under restrict ISO 9001 quality control system.
* Five (5) year manufacturer warranty for microscope.
* Unbeatable low price guaranteed or the difference back!
* Satisfaction guaranteed or your money back!
* Head: 45° inclined 360° swiveling trinocular
* Eyepiece: 30mm super widefield high-eyepoint WF10X/20 and WF20X/10
* Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
* Working Distance: up to 8" (200mm)
* Boom Stand: 20" double-arm (overall length: 30"), 17" high pillar, 10-1/4"x8-1/4"x2-0" solid cast steel base
* Fiber Optic Light Source: 110V (220V version available) power supply; 21V,150W halogen bulb
* Packages: 2 (50 lbs + 25 lbs)
* One Trinocular Stereo Zoom Head
* Two Pairs of Super Widefield High-Eyepoint Eyepieces, WF10X/20 and WF20X/10
* One 3.0MP Microscope Digital Image System with Software
* One Fiber Optic Ring Illuminator
* Our microscopes and accessories are manufactured under the strict guidelines established by ISO 9001: 2000 Standards with Certificate No: 3302/200213192. This item comes with 5-year warranty. We carry all of the full-coverage warranty services
