#gcu-18" red ring nat broach univ diag gr shaving mach

What is for sale: #gcu-18" red ring nat broach univ diag gr shaving mach

---

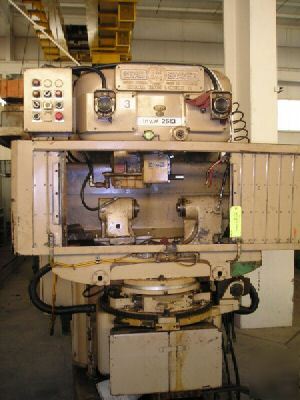

#GCU-18" RED RING NATIONAL BROACH UNIVERSAL
New 1970, Serial No. GCU-2813, Model GCU-18
One (1) Set Of Precision Matched Tailstock &
Headstock w/Centers (9" Center-Height)
Manual Loading (w/Pneumatic Tailstock)
Dial Indicator For Crossed Axis Setting
Full Complement Of Electrics (Motors/Controls)
BARNESDRILL Magnetic Separator
Operator's Manual, Wiring Diagrams, Parts List
Pitch Diameter Of Gear................... 3" - 18"
Outside Diameter Of Gear, Maximum........ 19-1/4"
Diametral Pitch Range.................... 3 - 16 DP
Cutter Diameter(s) Utilized.............. 7" - 9" - 12"
Table Stroke, Maximum.................... 6"
Distance Between Work Center, Maximum.... 22.5"
Machine Approximate OA Net Weight........ 8,300 LBS.
NOTES: Suitable For The Finish Shaving Of Spur &
Helical Gears Up To 19.25" (495mm) Diameter, & 5.5"
(138mm) Face-Width, Via The "Crossed-Axis" Method
PRICE: F.O.B. Cincinnati OH............. $22,500.00
All machines/equipment subject to prior sale.
