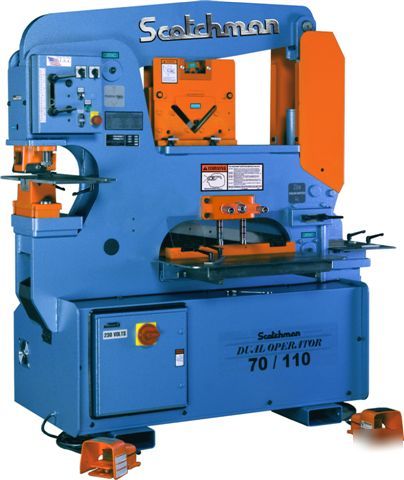

70Tn NEW IRONWORKER, Scotchman DO 70/110-24M
70Tn NEW IRONWORKER, Scotchman DO 70/110-24M
Dual Operator allows for Two Operators to Work at the Same Time at Full Capacity
70 Ton Punch Station (1-1/8" in 3/4")
Punch Gauging Table with Fence and Scale
Die Holder Complete with 2" Die Insert
Adjustable Swing-Away Stripper
One Round Punch & Die: Max. Dia. 1-1/4"
Two Adjustable Electric Stroke Controls with Scale
Two Electric Remote Foot Pedals
Angle Shear Capacity 6" x 6" x 1/2"
Rectangle Notcher 3" x 5" x 3/8",
Sabre Blade (1" x 6", 3/8" x 24")
Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations
230/460 Volt/3 Phase Electrics (must specify voltage)
All Guards Necessary to Comply with
Rated On: 65,000 PSI Tensile - A 36 Mild Steel
Punching Capacity: 70 Ton, 1-1/8” in 3/4"
Flat Bar Shear (Sabre Blade - Std): 110 Ton, 24” Length, 1" x 6", 3/4" x 10", 1/2" x 14", 3/8" x24"
Angle Shear 90 Degrees: 6” x 6” x 1/2”
Angle Shear 45 Degrees: 3” x 3” x 3/8”
Angle Shear 45 Degrees (with Bar Shear): 4" x 4" x 1/2"
Open End Brake: Max 1/4" x 6" Flat or Angle Iron
Pipe Notcher Schedule 40 ID: ¾”, 1”, 1-1/4”, 1-1/2”, 2”
Rectangle Notcher: 2” x 2-1/2"” x 3/8”
90 Deg. V. Notcher: 6” x 6” x 5/16”
Notcher Rectangle: 3" x 5" x 3/8", 3" x 4" x 1/2"
Notching in Leg of Channel: 6" to 10"
Round Rod: 1/4" TO 1-1/4", 9 Cav.
Square Rod: 1/4" to 1", 1 Cav.
Square Tube Shear: ½” to 2”, 14 ga.
Offset Die Holder: Max. 40 Ton
SPM - Light Material: ¼” Stroke
SPM - Heavy Material: ¾” Stroke
Motor Standard: 10 hp, 3 ph, 230/460/208/380/575
Dimensions: 30”W x 65”L x 72-1/8”H
Machine Location: HARRISON, NJ
