What is for sale: R&d technical RD3 vapor reflow unit

---

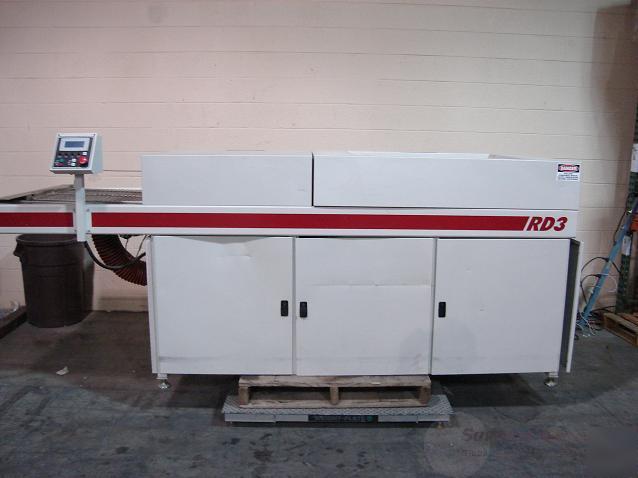

R&D TECHNICAL RD3 VAPOR REFLOW UNIT
R&D TECHNICAL RD3 VAPOR REFLOW UNIT
R&D TECHNICAL SERVICES REFLOW UNIT
LAST CHEMICAL USED: FLOURINERT FC-70
DESCRIPTION: R&D Technical Services Inc. offers a full line of Single Vapor Batch Type Reflow Systems. The RD3 provides consistent, uniform and reliable heat transfer for high quality reflow, curing and drying.
The RD3 utilizes Programmable Logic Controls coupled with a Touch Screen Display to deliver user friendly operation and programming. The system uses a single fluid to generate precise temperature in the reflow chamber. This fluid is environmentally safe and contains NO CFC's. The RD3 also integrates top and bottom ceramic preheats which allow the user to create the ideal thermal curve for their specific process.
APPLICATION: The RD3 was designed to accommodate high volume multi-shift production and larger sized products. This unit allows any company, regardless of size, to produce products of the highest quality.
The RD3 has a working envelope of 24"L x 24"H x 2.5"H using a version of our patented palletized conveyor system which keeps the product horizontal throughout the process. This unit also offers a 5" height option.
The Programmable Logic Control system monitors and controls all critical parameters for safe and efficient operation.
The Touch Screen Display allows the user easy access to all operational functions and operating programs.
Top and Bottom Ceramic Preheat Panels provide thermal curve modification and reflow process enhancement.
Working Fluid Auxiliary Tank and Filter System facilitate routine maintenance and working fluid filtration.
Programmable Timed Cooldown helps cool the product after reflow.
124" long x 49" wide x 50" high
208 VAC, 3 Phase, 80 Amps, 60 Hz - Standard
380 VAC, 3 Phase, 1 Neutral, 80 Amps. 50 HZ - Optional
175° to 260° Celsius depending on fluid used
Physical Condition ~ Cosmetic Appearance
Good ~ "Normal signs of wear and tear"
Power On Test ~ Does Not Reflect Functionality
Unable to power up (either don't have correct power, connection, etc...)
Original packaging is missing.
This item is eligible for pickup unless otherwise stated.
Click on any of these LTL/Freight providers for rate quotes.
1) Destination Zip Code 2) Residential / Business 3) Forklift / Dock Availability
Money Orders ~ Cashier's Checks ~ Wire Transfers
Surplus Supply does not allow returns.
