100 gallon pfaudler reactor - glass lined - 100/fv -jkt


What is for sale: 100 gallon pfaudler reactor - glass lined - 100/fv -jkt

phone: (***)-831-8485 - fax: (***)-831-8414

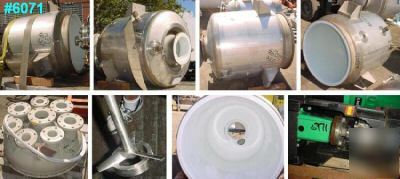

100 GALLON PFAUDLER REACTOR - GLASS LINED - 100/FV - JACKETED
1 - used 100 gallon Pfaudler Glass Lined Reactor
Built 1995. Rated 100 psi/FV internal @ 300 deg. F
MAWP. -20 deg. F @ 100 psi MIN.
Stainless steel jacket, pressure t.b.d.
Unit is approx. 30 in. inside dia. x 32 in. straight side with dish bottom
and approx. 10 in. center bottom outlet
Unit has a damaged spot which requires repair near the bottom outlet
(approx. 4 in. x 3 1/2 in. area)
Dome top with 8 flanged inlets including 5 in. for agitator, (4) 3 in., (3) 4 in.
National Board #48125. Serial number J001651
Driven by .5 HP/.373 kw Lightnin Vektor model V5S37 agitator
Vektor S/N 95/E35655. 230/460V. UL listed
Metallic shaft is approx. 1 in. dia. x 52 in. long
with (3) pitched turbine blades & stabilizer ring (ground smooth welded)

Contact: C-Castillo@parts-recycling.com (Celina Castillo) (email hidden).
