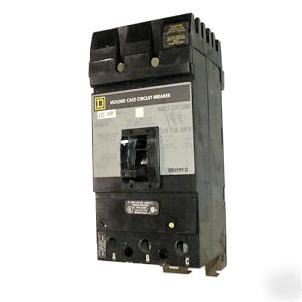

New i-line, square d KA36175 circuit breaker, * in box*

What is for sale: New i-line, square d KA36175 circuit breaker, * in box*

---

Details & Specifications for KA36175
Technical Description: Molded Case, Thermal Magnetic; K Frame; 240 Vac At 50 60 Hz, 480 Vac Star 277 Vac At 50 60 Hz, 480 Vac At 50 60 Hz, 600 Vac Star 347 Vac At 50 60 Hz, 600 Vac At 50 60 Hz (ul Csa Nom); 240 415 Vac At 50 60 Hz (iec); 250 Vdc; 175 Ampere At 40 Deg C; 3 Pole
Product Name: KA36175Brand: Square DSummary: 3P-600V-175A CBBrand Name: I-line[r]Maximum AC Voltage Rating - UOM: VMaximum DC Voltage Rating - UOM: VApproval: Ul, csa, ceModel: KaAdditional Information: Applicable standard iec 947-2
Type: Molded case, thermal magneticFrame Type: KMaximum AC Voltage Rating: 600Maximum DC Voltage Rating: 250Current Rating: 175 ampere at 40 deg cNumber of Poles: 3Interrupting Rating: 42 kiloampere at 240 vac, 25 kiloampere at 480 vac star/277 vac or 480 vac, 22 kiloampere at 600 vac star/347 vac or 600 vac (ul/csa/nom); 10 kiloampere at 240/415 vac (iec); 10 kiloampere at 250 vdcSize: 4.5 inch w x 4.75 inch d x 8 inch hVoltage Rating: 240 vac at 50/60 hz, 480 vac star/277 vac at 50/60 hz, 480 vac at 50/60 hz, 600 vac star/347 vac at 50/60 hz, 600 vac at 50/60 hz (ul/csa/nom); 240/415 vac at 50/60 hz (iec); 250 vdc
