National inst. at-mio-16 multifunction i/o board

What is for sale: National inst. at-mio-16 multifunction i/o board

---

National Instruments AT-MIO-16 Multifunction I/O Board for the PC/AT (041306603140)
This does not mean that the unit doesn’t work, only that we have not tested or checked it out.
This may also mean that we are not knowledgeable in that specific item.
Please call MONIQUE Toll Free at 1-866-MHZ-ELEC (1-(***)-649-3532) if you have questions
between the hours of 9:00 AM and 4:00 PM Monday thru Friday Pacific Time.
The Item may vary from picture as manufacture may change model appearance.
All information, including description, specifications and features are from a manufacturers
data sheet or manual and are subject to change without notice.
Meaning that all information included in the description, specifications and features
What you see is what you get! If it doesn’t show it you probably won’t get it!

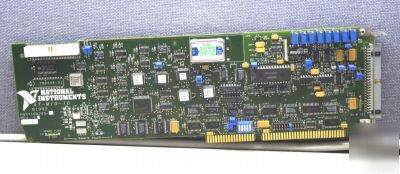

National Instruments AT-MIO-16 Multifunction I/O Board for the PC/AT
* Assembly Number: 180705-11 Rev. E6
* The AT-MIO-16 is a high-performance multifunction analog, digital, and timing I/O board, and is a member of the National Instruments AT Series of expansion boards for the IBM PC AT and compatible computers. The AT-MIO-16 contains a 12-bit ADC with up to 16 analog inputs, two 12-bit DACs with voltage outputs, eight lines of TTL-compatible digital I/O, and three 16-bit counter/timer channels for timing I/O. If you need additional analog inputs, you can use the AMUX-64T multiplexer board, which is a four-to-one multiplexer that can process 64 single-ended inputs. You can cascade up to four AMUX-64Ts to obtain 256 single-ended inputs.
