(1996) schelling 12' cnc horizontal panel saw FI330 330

What is for sale: (1996) schelling 12' cnc horizontal panel saw FI330 330

---

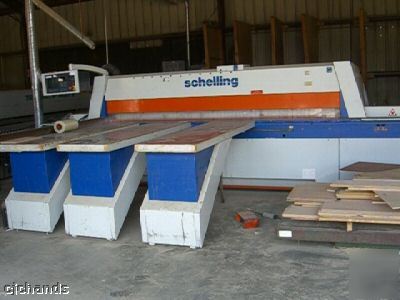

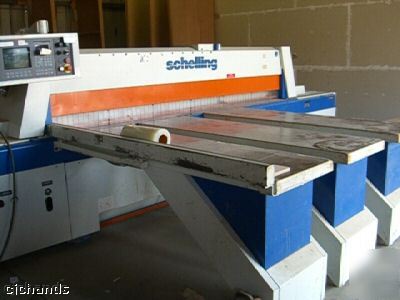

(1996) Schelling 12' CNC horizontal Panel SAW
Mod: FI 330 with Schelling Controls
Schelling is the specialist in panel-dividing technology. For more than 90 years, Schelling Anlagenbau GmbH has produced cut-to-size saws and systems for wood materials as well as precision saws for plastics, circuit boards and non-ferrous metal materials.
Manufacture Website: http://www.schelling.co.uk/FLM.358+M57d0acf4f16.0.html
Well maintenance machine that came out from large wood shop that owners are retired. Manufactured in 1995, operate in 1996
Machine seeks new owner at fraction of new cost.
For MUCH more machine’s pictures (details)
Or visit: http:// /html_cnc/cnc_wood_Horz_panelsaw_scheling.html
126" Cutting length capacity. 3.3" max saw blade projection, 15HP main motor & 2HP scoring saw motor.
Features: Variable saw carriage travel speed 0-197FPM constant Return of 197 FPM: electronically controlled

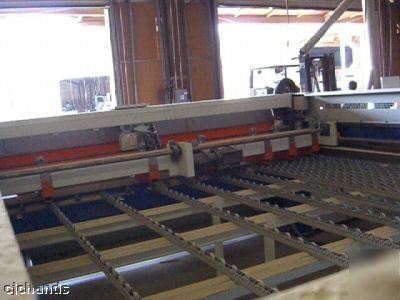

overhead program fence, rack & pinion driven on both sides. Forward speed 0-197 FPM, return speed 197FPM (6) clamps

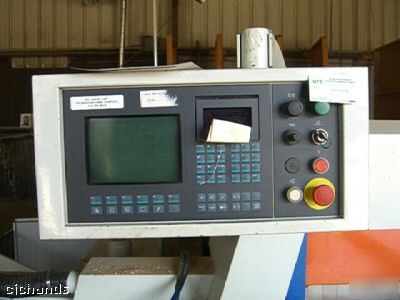

- Complete with Conductor electronic control with monochrome display integrated into operator control panel (displays cutting
dimensions). (400) cutting patterns with (50) different dimensions for ea pattern (5000 total cutting lines expandable)
Self diagnositc in clear text, data input by keyaboard or possible direct downlading from office PC.

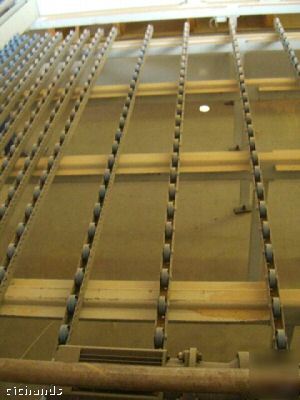

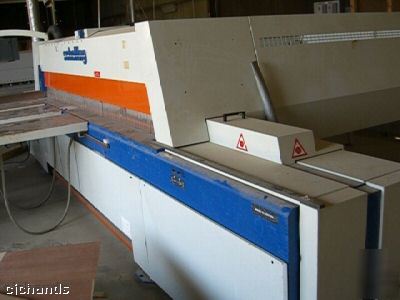

- INcludes: 2300 mm Long crosscut fence (front to back) (2) side/crosscut aligner (3) front mounted air float tables for moving panel from rip to crosss cut psotion (24"x78" each of which 2 are movable); rear of machine fully enclosed for safety with man-height sheet metal panels.
Schelling Cut to size saw type
GS-Test # 93 10 73 "dust test"
Schelling & Co. Maschinenfabrik, Gebhard-Schwarzlerstr 34, A-6858 Schwarzach
Main saw blad "lecuco no. 001165"
no. of teeth 24 (conical tooth)
(+/- 0.2mm over a side length of 1 m
MACHINE LOCATION: Santa Ana, CA 92704
For question regard to the item, please call: Jeff (***) 241-3596
