New port 8008 ldc + ldd/tec 8610.8C + 708 ldm + dfb 20MW


What is for sale: New port 8008 ldc + ldd/tec 8610.8C + 708 ldm + dfb 20MW

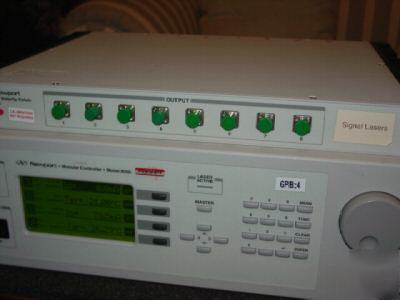

Newport Model 8008 Laser Diode Controller Fully Loaded with 8X 8610.8C LDD/TEC combo modules and 708 8-Channel butterfly laser diode mount with 8X 20mW Sumitomo DFB Lasers
Click on following Pictures for larger view.
* Complete system controller for 8 channel applications, EDFA pumping or DWDM signal sources
* 16 channel controller for 2-D VCSEL arrays
* 8600.8C combo LDD/TEC modules feature a programmable signal generator (200 Hz–300 kHz)
* 8501.8D dual output LDD modules have 100 mA current source tailored for use with VCSELs
* IEEE-488 and RS-232 interfaces
The Model 8008 Modular Controller expands on the modular laser diode controller concept to meet the higher channel densities found in Dense WDM (DWDM) applications and 2-D VCSEL arrays. The eight bays accept either 8600C Combo Laser Diode Driver (LDD)/ Temperature Controller (TEC) modules or 8500D Dual Output LDD modules.
8600C Series Combo LDD/TEC modules are designed for use in communication applications and have an internal function generator for testing systems. The user only needs to program the frequency, Imax, and Imin to modulate the laser diode output. Both sinewave or squarewave (50% duty cycle) waveforms are available from 200 Hz–300 kHz. This range of frequencies meets today’s low frequency single-tone and high data rate test requirements for datacom and telecom.
708 8-Channel Laser Diode Mount with DFB Lasers The Model 708 8-Channel Telecom Laser Diode Mount is designed to hold up to 8 butterfly-type telecommunications laser diodes. The mount includes rack-mount ears, and can be easily installed into a standard instrumentation rack. Eight fiber optic bulkhead connectors are mounted onto the front panel, with available choices including: FC/PC, FC/APC, SC/PC, SC/APC, or ST/PC external fiber connectors. The 708 mount offers an easy-to-use platform that is compatible with all of Newport’s benchtop laser diode instrumentation and with our test and measurement systems.
* Excellent Working condition

Contact: evangeline-navarro@parts-recycling.com (Evangeline Navarro) (email hidden).
