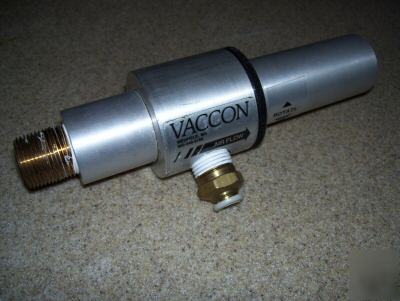

Vdf-750 vaccon variable vacuum generator pump


What is for sale: Vdf-750 vaccon variable vacuum generator pump

VDF Series - Variable Vacuum Pumps
BSPP Threads Are Available On All Products
Consult Factory For Ordering Details
* Non-clogging, straight-through design
* High performance to air consumption ratio
* Field adjustable for your specific application
Curious or Confused? Learn how this product functions and learn it's principles of operation.
View or download product drawings.
Having trouble with this product & need help? Let us be of assistance. View the instructions (PDF format) or contact us.
How does a VDF pump work?The variable performance of the VDF pump is achieved by increasing the annular gap between the venturi nozzle and the diffuser. Rotating the diffuser section counter-clockwise will increase the opening, allowing more compressed air to flow through the unit and increasing both the vacuum flow and the vacuum level. The result is a variable vacuum pump that can be adjusted to meet an application's exact requirements.
Air Consumption (SCFM) vs. Vacuum Level ("Hg) @ 80PSI
Vacuum Flow (SCFM) vs. Vacuum Level ("Hg) @ 80PSI
Evacuation Time (Seconds) Based On 1 cu. ft. Volume w/ VDF Set For 25"Hg.
Product Drawings : Want to download the .DXF or .DWG file? Goto the: download center.
1. Power the unit by supplying proper air pressure (psi) to the air supply port [A].
2. Loosen the Jan Nut [B] so that the unit can be freely adjusted.
3. Adjust the throat [C] until the appropriate or desire vacuum level ("Hg.) or vacuum flow (CFM) is reached.
4. Re tighten the Jam Nut [B] to set the VDF unit to your custom settings.
NOTE: Tightening the exhaust or intake of the VDF with a wrench may damage the unit!
