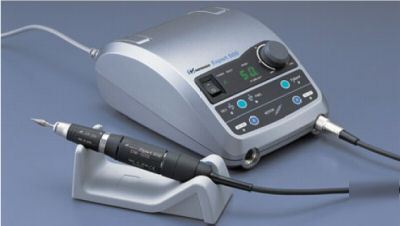

Nsk espert 500 standard set brushless hand grinder

What is for sale: Nsk espert 500 standard set brushless hand grinder

---

• Realized high output power of 140W and high durability product by the harmonious combination of a hall-element brushless DC motor and high grade electronic circuitry.
-High power system max output 140W
-Speed Range: 1,000-50,000 min (rpm)
-Microprocessor controlled for optimal motor control
-Hand switch (NSK smart switch)
-Memory speed function (FIXpeed)
Espert 500 Control Unit NE-96 Specifications
-Weight : 5 lb. 11.71 oz. / 2.6 kg
-Power Source : AC120V / 230V, 50-60Hz (need a adapter switch to 230 volt)
-Accessories : Handpiece stand 1piece, Handpiece holder 1 piece
-Dimensions : W 6.77" x D 9.06" x H 3.70"
Small, lightweight, high speed brushless DC motor, Incorporates the NSK smart switch for easy on/off operation, Very low vibration noise and maintenance.
-Motor Speed: 1,000-50,000 min (rpm)
-Dimensions: 0.96" x 4.24" (with out EHR-500), 0.52"x 6.58" (with EHR-500)
-Collet Chuck: 3/32"(2.35mm)-1/8"(3.175mm)
Nsk Espert 500 Standard Set Include;
-Compact Motor Handpiece (ENK50C-HR): 1 piece
-Collet Chuck: 3/32"(2.35mm) - 1/8"(3.175mm) 1 piece each
-Control Unit (NE-96): 1 piece
ULTRA PRECISION COMPACT MOTOR BRUSHLESS HAND GRINDER ESPERT 500
-Evolutionary New Design High-Performance Brushless Micro Grinder
The Espert 500 brushless motor takes motor technology to an even higher level.The new state of the art motor has dramatically increased efficiency and torque output.The microprocessor based control unit provides optimal control of the motors and allows for increased flexibility in this multi-function system.
Speed 1,000~50,000 min (rpm) ; Speed is steplessly variable from 1,000~50,000 min(rpm).Smooth and powerful torque is delivered at both high and low speeds.The extremely high maximum speed of 50,000min (rpm) allows high precision micro-machining.
NSK Smart Switch ; The switch provides a click sensation and a confirmation tone is produced by the control unit when the switch is operated.The motortype is distinguishable by the switch color.
Excellent Durability ; High performance brushless motor eliminates the need to change carbon brushes.NSK's internal load test has proven continuous use for more than 5,000 hours.
High precision ; NSK' s ultra-precision technology ensures bur concentricity of 0.02 mm (0.0008") or less, which allows for very high precision finishing.
Low Noise, Low Vibration ; The brushless motor and incorporated cooling fan have reduced the vibration and noise levels, resulting in a quieter, more comfortable work environment.Dramatically compared with conventional grinders.
Special Dust-Proof Mechanism ; Then handpiece has a patented built-in-dust protection system to prevent the infiltration of dust and debris into the front bearings.This NSK patented design assures long-term durability.
10 Types of Attachments Available ; All of the Espert 500 system attachments are available for use with this system.9 different types of attachments and 1 speed reducer making an almost infinite number of applications possible. (Attachments are sold separately)
Wide Range of Collet Chucks Available ; Collet sizes range from tiny 0.3 mm up, with a wide variety of sizes available.Tools can be changed without the use of any wrenches.
Micro Grinder & Handpiece Stand ; This specially designed micromotor stand allows easy pick-up and set-down of the micro-grinder.Strong, but soft to the touch, the micro-grinder stand contains convenient,integrated storage compartments for adjustment wrenches and a spare chuck.
-New Advenced Design Control Unit
Optimal Control via Microcomputer ; The operation of all Espert 500 functions is controlled by a high performance microcomputer (CPU) that is programmed with NSK's proprietary technology. NSK's CPU has direct control of the brushless micro-grinder allowing smooth and highly precise cutting and polishing of a wide variety of materials.Bur "chatter" has been eliminated. The system automatically senses which micromotor is attached (ENK-500C or ENK-500T) and self adjusts to provide optimum micro-grinder performance.
Eco-Friendly Design ; The electronic circuits are designed using NSK's proprietary technology to meet eco-friendly expectations by minimizing power consumption. Since power demands are minimal, no significant heat is generated and no coolong fan is required.
Auto Cruise Function ; The control unit is equipped with an auto cruise function that operates the micro-grinder at a preset speed without the need to use the foot pedal. This function eliminates foot fatigue during prolonged operation.
Memory Speed Function FIXpeed ; An exclusive new feature of the Espert 500 sytem, the FIXpeed system allowsthe user independently preset the speed of motor A and motor B. For example motor A can be set to maintain the speed set by the FIXpeed system while motor B has variable control using a foot pedal. This function allows for unprecedented flexibility.
Simplified Hand and Foot Pedal Control ; You no longer need to push a switch on the control unit to switch between hand and foot pedal control. If you want to operate the motor handpiece by hand simply push the NSK smart switch, if you want to use foot pedal control simply depress the foot pedal.
*EMC (Electromagnetic Compatibility)
High Quality Metallic Silver Body
Other Features ; Self Check Function (Maintenance Mode), Smooth Operation, Operation Check Sound, Highly Visible and easy to operate front panel, 2-Digit Digital Display, Error Code Display Function
