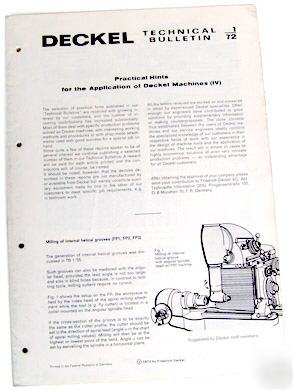

Deckel technical manual 72

What is for sale: Deckel technical manual 72

---

for the Application of Deckel Machines (IV)
TOPICS COVERED IN THIS MANUAL INCLUDE:
* Milling of internal helical grooves (FP1, FP2, FP3)
* Milling of small-lead helical profiles,
e. g. screw threads (FP1, FP2, FP3)
* Grinding of radii (SO, SOE)
* Milling of curved line on cone surface (KF)
* Producing sunk workpiece contours from raised template contours
* Milling of oval-section patterns and masters with varying
* Milling or grinding of semispherical components (FP, LKS)
* Milling of large radii (FP)
* Milling of patterns and masters with vertical cross-sections
of slightly oval shape (KF)
* Cast mouldings with wear-resistant surface for form engraving (G, GK)
* Rigid patterns for copy milling of high, slender workpieces (KF)
* Mounting plate for magnetic-base dial indicator holder (FP2, FP3, FP3L)
* Drill chucks for engraving machines and profiling millers (G, GK)
Packed With Lots Of Diagrams & Illustrations
