X-y-z placing table with vacuum pump, model b

What is for sale: X-y-z placing table with vacuum pump, model b

---

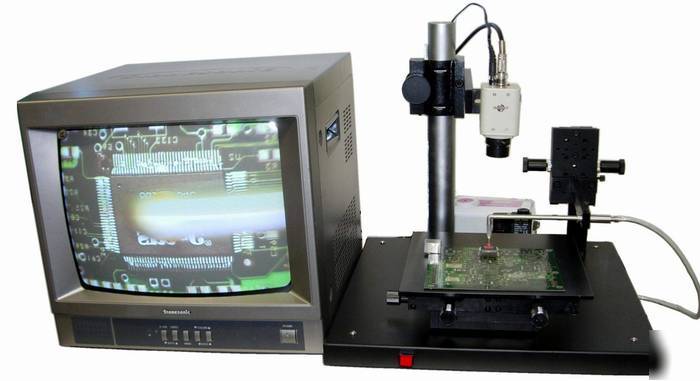

The upgraded X-Y-Z table is specially developed to help placing fine pitch chips on circuit boards. The upgrades include adjustable video camera post and electrical vacuum valve. The chip to be placed is aligned with the pads accurately with fine x, y and rotational adjustments. Rotation is achieved by adjusting the left or right Y knobs. The placing process is viewed clearly over a color video camera or a microscope(SZM7045TR boom stand microscope). Placing the chip on the board by turning the z direction knob. Vacuum is turned on and off by the vacuum swtich in front of the table. Vacuum pump is included. Video camera is sold seperatly.
Test it in our Los Angles showroom. Call (***)614-4896 to make arrangement.
