Renishaw probe model MP8 cat 50 taper holder w/box nice

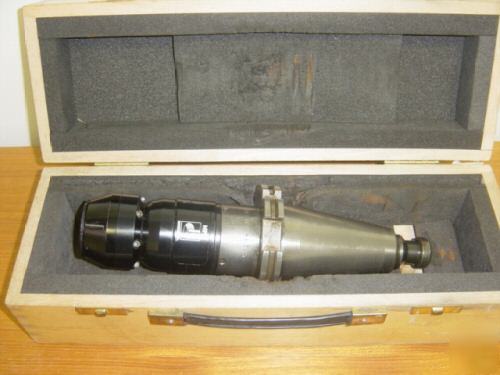

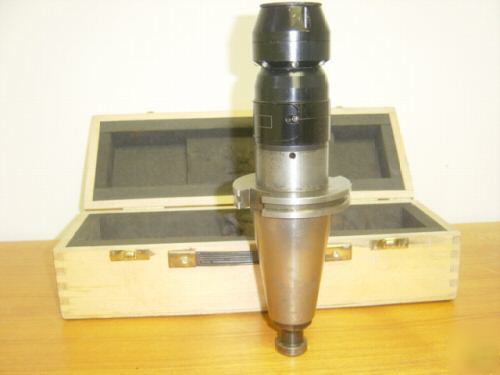

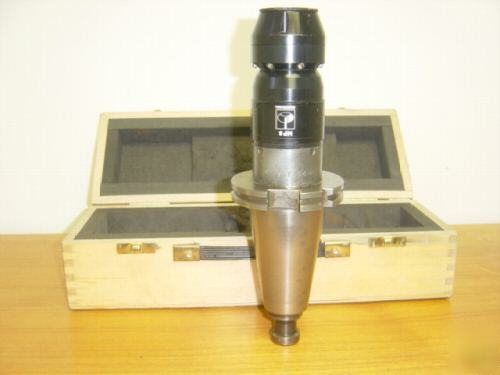

What is for sale: Renishaw probe model MP8 cat 50 taper holder w/box nice

3. With Cat 50 Holder M-2033-6745

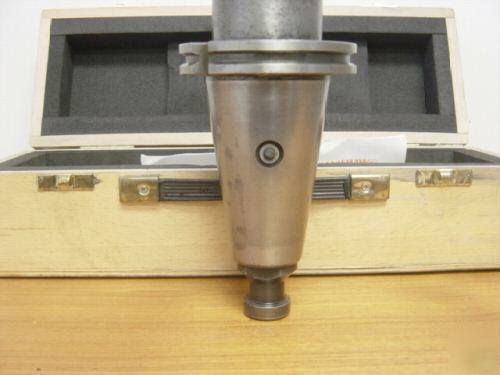

4. With button on side of holder to turn probe on and off.
The MP8 is a compact optical transmission probe system which is used for workpiece setting and inspection on machining centers. MP8 Probe performance is identical to the MP7. The power ON/OFF mechanism differs in that the MP8 is supplied with a dedicated shank incorporating a shank switch. When the probe is inserted in the machine spindle, the shank switch is depressed, switching probe power ON. Probe power is automatically switched OFF when the probe is removed from the machine spindle. The MP8 probe system requires an OMM, OMM Mounting bracket, MI12 Interface, and conduit.
Sense directions: +\- X, +\- Y, +\- Z
Stylus overtravel: 17.5°X and Y directions
Uni-Directional Repeatability Max 2 Sigma (2σ) Value: Repeatability of 1.0μm (40μ inch) is valid for test velocity of 480mm/min (1.57ft/min) at stylus tip
Condition- Looks very good, as removed from service
Please see our store, HALL’S ANYTHING AND EVERYTHING for other items for sale.

Contact: mildred-roy@parts-recycling.com (Mildred Roy) (email hidden).
