Hp 54720D digitizing oscilloscope mainframe 4 channel.

What is for sale: Hp 54720D digitizing oscilloscope mainframe 4 channel.

---

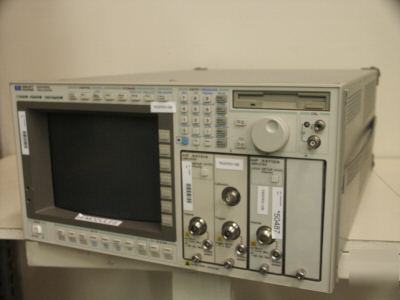

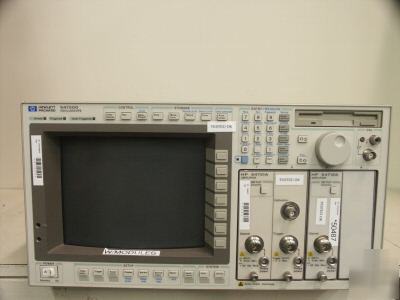

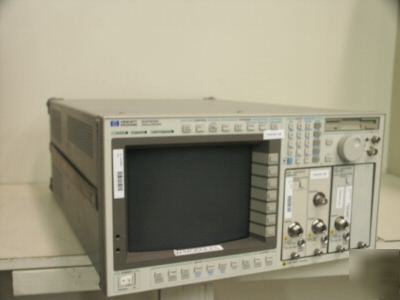

HP 54720D Digitizing Oscilloscope Mainframe. 4 channel scope with a sampling rate up to 8 GS/s and a memory of 64 K per channel, bandwidth of 2GHz.
With a HP 54721A (1.1 GHz - 4 GSa/s 128K Meg. With Internal and External Trigger Amplifier Plug-in) It uses two slots which allows a maximum sample rate of 4 GSa/s and a maximum acquisition memory of 128K.
And a HP 54712A (1.1 GHz - 2 GSa/s 64K Meg. With Internal Trigger Amplifier Plug-in) Best suited for equivalent-time sampling because it allows access to the highest system bandwidths.
The HP 54720D real-time oscilloscope provides the superior bandwidth, sample rate, flatness, and accuracy you need to capture intermittent design problems. The 54720D allows sample rates to 8 GSa/s and a single-shot analog bandwidth of 2-GHz. Each of the four 2 GSa/s A/Ds have 64K of memory allowing 256k points of acquisition at the maximum sample rate.
* One channel at 8 GSa/s, or
* Two channels at 4 GSa/s, or
* Four channels at 2 GSa/s, or
* Up to 8 channels at 2 GSa/s
* 30 ps time-interval accuracy (equivalent time)
* ± 25-ps time-interval accuracy (real time)
* 2.5-GHz, 0.6-pF active probing
* 3.5-inch, MS-DOS-compatible disk drive
All Items sell with 5 days right of return, and 15 days GUARANTEE on all parts and labor.
If in order to comply with our guarantee, we need to refund your money, you will get a FULL refund for the price of the unit...
If you need to make use of the 15 days Guarantee - We will fix, or replace, your unit. In case every attempt to fix or replace it fails, we’ll refund your money.
