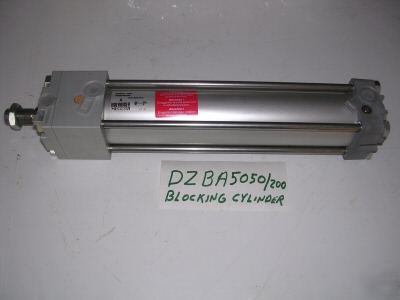

New hoerbiger-origa locking air cylinder 50MM by 200MM


What is for sale: New hoerbiger-origa locking air cylinder 50MM by 200MM

New Surplus Hoerbiger-Origa Blocking Pneumatic Air Cylinder 50mm by 200mm
Double Acting, Part Type- DZBA5050/200 & Order # PA29551-0200
Forward Stroke Blocking Only, Magnetic Piston for Position Sensors
Nose and CAP Mounting Via (4) Tapped Holes
Single Ended Piston Rod. Max Pressure 8 bar/116 psi
50mm Bore, 200mm Stroke, 20mm Diameter Piston Rod with M16-1,5 Male Thread
(2) Piston Air Ports are G1/4 and Lock Air Port is G1/8
Adjustable Pneumatic Cushion on Retract Only
Holding Force Corresponds to the Same force as the Cylinder Can Apply
