Muegge wr-340 waveguide stub tuner


What is for sale: Muegge wr-340 waveguide stub tuner

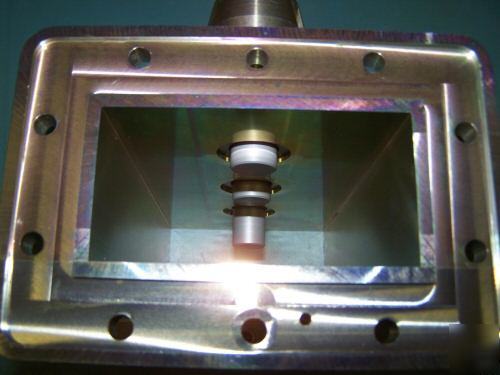

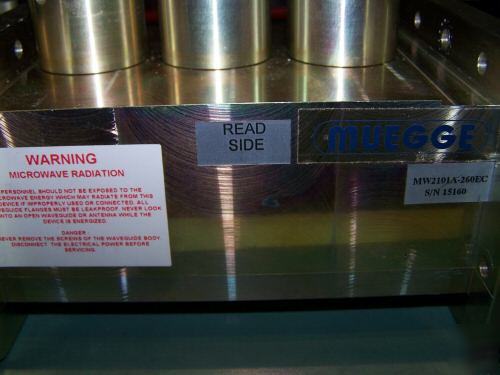

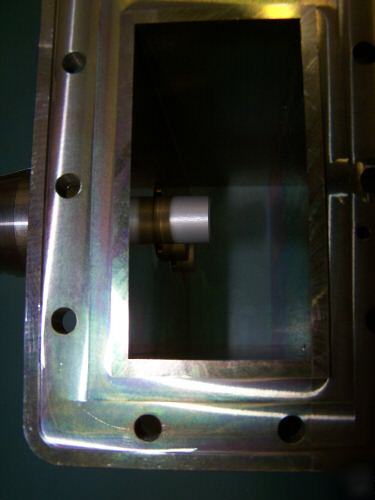

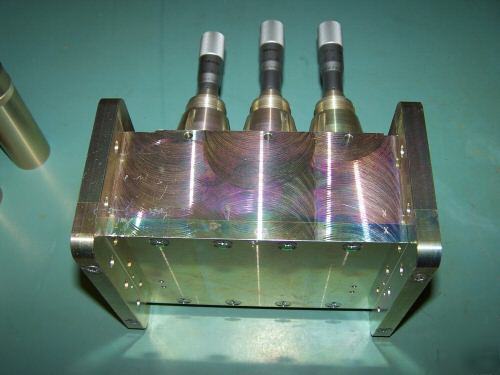

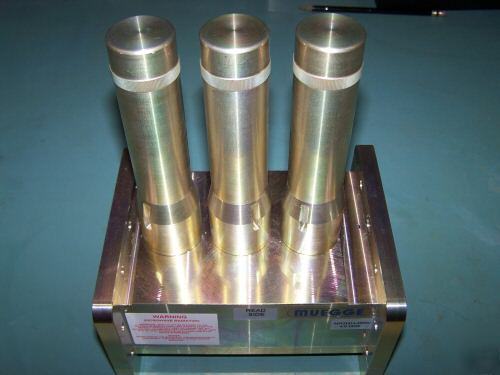

This a WR-340 Microwave stub tuner at 2.45 GHz. The manufacturer is Muegge model number MW2101A-260EC. This is in excellent condition with no burns or arcing. Can't even tell if it has ever been used.
This design is very similaer to the GAE’s family of Precision 3-Stub Tuners are designed for load impedance matching in high power microwave heating systems. Their simple yet rugged design makes these tuners ideal for a variety of laboratory, production and OEM applications.
This configuration is capable of tuning a broader range of impedances than standard tuners having no offset.

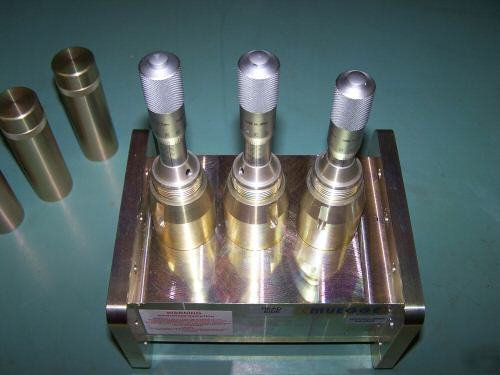

A precision drive mechanism and locking multi-turn dial are provided on each tuning stub enabling highly accurate and repeatable tuning.
Used in many applications simular to MKS / ASTEX microwave Etch and Cvd systems.
Here is a link to the manufactures website:
http://www.muegge.de/data_sheets_3-stub-tuner/02_ci_stubtuner_r32_01.htm
Richardson Electronics has a simular item listed under WR340TUNER3B
3-Stub Tuner. You will be surprised on how much they are.
http://catalog.rell.com/rellecom/scripts/SkuSearchResults2.asp?Sku=tuner&radio=3&maxrecs=50&T3=2&prevkey=+&recfirst=0&reclast=0&searchtotal=%2D1

Contact: Kurt-kidd@parts-recycling.com (Kurt Kidd) (email hidden).
