32 ton minster #4 obi press, air clutch, light curtains

What is for sale: 32 ton minster #4 obi press, air clutch, light curtains

---

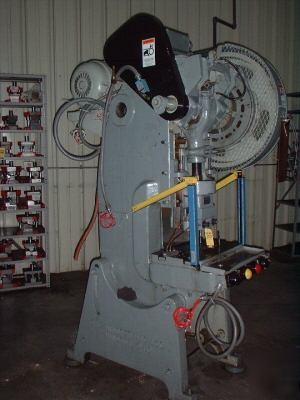

(1) Used 32 Ton MINSTER #4 OBI PRESS; Model #: 4; S/N: 4-7433
Capacity...........................................................…... 32 Ton
Stroke……………………………………………. 3” (est.)
Shut Height Over Bed (SDAU)………….……… 9 ½”
Slide Adjustment………………………………… 3-5" Nominal
Bed Area…………………………………………. 22" L-R x 14" F-B
Flanged Slide Face Area……………………….… 12" L-R x 8 ½" F-B
Opening In Bed…………………………………… 4" x 4"
Throat Depth……………………………………… 4 ¾" to Center of Slide
Opening Through Back…………………………… 10 5/8"
Distance Bed To Floor……………………………. 34"
Speed…………....………………………………… S.P.M. (est.)
Motor……………………………………………… 3 HP @ 860 RPM
Electrical Characteristics......................................... 220/440 V.A.C.
Light Curtain W 8 Port DI PRO Sensor Interface
Complete Electrical Control Unit
Overall Dimensions: 40" Wide x 58" Long x 90" High
Weight: 7,000 Lbs. (estimated)
F.O.B...........Casa Grande, Arizona
