Tennsmith box & pan hand brake 4' x 12 gauge

What is for sale: Tennsmith box & pan hand brake 4' x 12 gauge

---

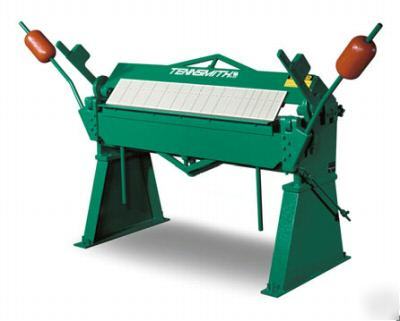

Tennsmith Box & Pan Hand Brake 4' x 12 Gauge
TENNSMITHÂ’s box and pan hand brake is an economical tool for a wide range of sheet metal bending and forming operations. The Model HBU48-12 can handle 12-gauge and lighter materials. This hand brake is ideal for both box and pan and straight bending in hot and cold rolled plate, stainless steel, aluminum and heavy plastic. Ample clamping and nose bar adjustments allow for the bend radius necessary for your application. Welded steel plate construction and heavy truss rods and braces provide strength and rigidity. This brake features a removable apron insert for 1/4-inch bends in lighter material. The upper leaf adjustment screws feature thrust bearings to prevent upper leaf creep. Ductile steel clamp handles, heavy counterweights and an apron stop rod add to the brakeÂ’s ease of operation. The removable fingers are case hardened for long service. TENNSMITHÂ’S heavy-duty universal hand brake is a productive addition to any shop doing prototype or design work, fabrication or short run production in heavier materials.
* Capacity, mild steel 12 gauge
* Capacity, stainless steel 16 gauge
* Maximum Iift of beam 1 1/2"
* Front to rear beam adjustment 1"
* Minimum reverse bend (angle and insert removed) 1/4"
* Minimum flange in capacity material 1"
* Finger widths 2", 3" and 4"
* Dimensions, counterweights in place, 72" x 36" x 53"
