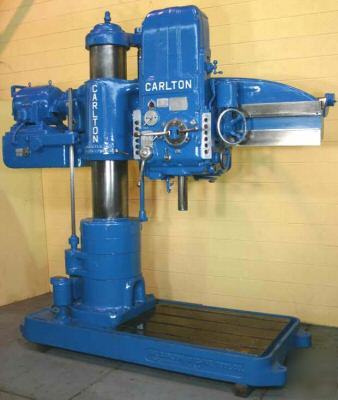

4' x 13" carlton radial drill 54" x 42" base 10 hp

What is for sale: 4' x 13" carlton radial drill 54" x 42" base 10 hp

---

SERIAL ............................. 3A3197
AREA OF BASE ....................... 54" X 42"
SPINDLE SPEEDS...................... (36) 15 TO 1500 RPM
FEEDS .............................. (18) .004 TO .125 IPR
THREADS ............................ 8, 11-1/2., 14 & 18 TPI
SPINDLE TRAVEL ..................... 18"
DIAMETER OF SPINDLE ................ 3-1/4"
TAPER IN SPINDLE ................... #5 MORSE TAPER
DISTANCE SPINDLE TO BASE ........... 10-1/2" MIN, 60" MAX
DISTANCE SPINDLE TO COLUMN ......... 15" MIN, 48" MAX
POWER HEAD TRAVERSE ................ YES
POWER ELEVATION .................... YES
POWER CLAMPING ..................... YES
COOLANT ............................ YES
MOTOR, HORSEPOWER .................. 10
