Winona van norman crankshaft grinder


What is for sale: Winona van norman crankshaft grinder

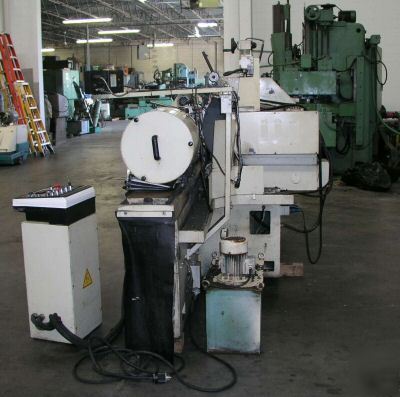

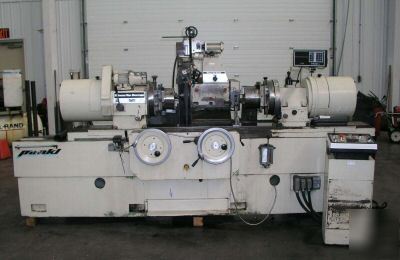

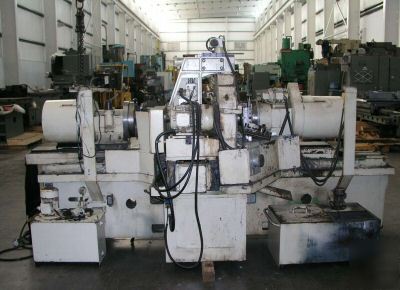

WINONA VAN NORMAN CRANKSHAFT GRINDER
Serial # 180186 New 1986 Model # CG250
Height of Centers on Table: 9.8" / 250 mm
Max. Distance Between Centers: 67.7" / 1720 mm
Max. Distance Between Self-Centering Chucks: 66.1" / 1680 mm
Max. Diameter Admitted on Table: 19.6" / 500 mm
Max. Head Offset: 3.5" / 90 mm
Max. Diameter Ground Using a New Grinding Wheel: 5.1" / 130 mm
Max. Diameter Admitted on Steady Rest: 5.1" / 130 mm
Grind Wheel Diameter: 27.9" / 710 mm
Grind Wheel Max. Thickness: 1.9" / 50 mm
Grind Wheel Min. Thickness: .78" / 20 mm
Max. Weight Between Centers: 220 Lbs. / 100 kg
Max. Weight Between Steady Rests: 551 Lbs. / 250 kg
Self Centering Chucks Diameter: 7.8" / 200 mm
Quick Stroke of Grinding Wheel Head: 6.1" / 155 mm
Micrometric Stroke of Grinding Wheel Head: 5.9" / 150 mm
Grind Wheel Feed for Every Hand Wheel Revolution: .03" / 1 mm
Impulse Grind Wheel Feed: .0001" / .005 mm
Stand Alone Operator Control Console
(2) 3-Jaw Self Centering Chucks
Trak Single Axis Digital Readout on Longitudinal Table Travel
Coolant System with Pump and Piping
5 HP Spindle Motor, Wired for 3 Phase, 60 Cycle, 220/380 Volts
Machine Currently Wired for 3 Phase, 60 Cycle, 220 Volts
Overall Size: 151" L-R x 64" F-B x 60" H x 9,000 Lbs.
Loaded on Truck, Our Warehouse, York, PA

Contact: Lance.shelton@parts-recycling.com (Lance Shelton) (email hidden).
