Hp/agilent 4284A precision lcr meter w/opts. 001 & 006


What is for sale: Hp/agilent 4284A precision lcr meter w/opts. 001 & 006

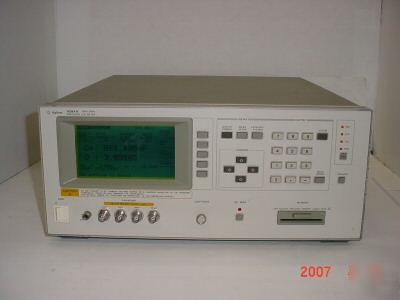

HP/Agilent 4284A Precision LCR Meter 20Hz to 1MHz with options 001 and 006
The 4284A Precision LCR Meter can be used to improve component quality by providing a accurate, high-throughput test solution.
The wide 20Hz to 1MHz test frequency range and superior test signal performance allow the 4284A to test components to the most commonly used test standards, such as IEC/MIL standards, and under conditions that simulate the intended application.
* [Z],R,X range is from 0.01 mohm to 99.9999 Mohm.
* [Y], G, B range is from 0.01 ns to 99.9999 sec.
* C range is from 0.01 fF to 9.9999 F.
* L range is from 0.01 nH to 99.9999 kH.
* D from 0.000001 to 99.9999 kH.
* Q range from 0.01 to 99999.9.
* ø range is -180.000° to 180.000°.
* Æ % is from -999.999% to 999.999%.
* Basic measurement accuracy is 0.05%.
* Large dot-matrix display for: Measured values, control settings, comparator limits and decisions, list sweep tables, self-test messages and annunciations.
This uniit has the following options:
* Option 001: Power Amplifier/DC Bias
* Option 006: 2m/4m Cable Length Operation
This item also includes a 04278-89001 Memory Card , a Power Cord and a CD copy of Documentation Set
