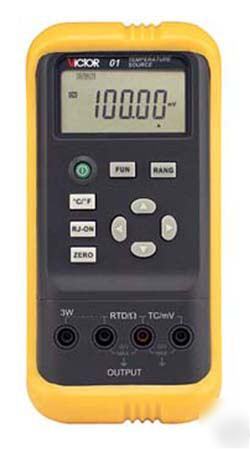

Process calibrator VC01

What is for sale: Process calibrator VC01

---

● Power supply: single 9V battery (ANSI/NEDA 1604A or IEC6LR619V alkaline)
● Max. permitted voltage: 30V(between any two terminal or between any terminal and ground)
● Operating temperature: 0℃ to 50℃
● Operating relative humidity: ≤80% RH
● Storage temperature: ≤-10℃ to 55℃
● Size: 200×100×40mm(with a holster )
● Weight: 550g(with a holster)
● Accessory: operation instruction, a set of CF-36 industrial test lead(with alligator clips)
● Option: AC power-supply adapter (VCPS) and a set of CF-31-A industrial test lead(with probe clips)
● Safety: certified as compliant to IEC1010 provisions (Safety Standard issued by International Electro-technical Commission)
Note 1: Without accessory lead resistance
Note 2: Range of exciting current: 0.5mA to 2mA; max. output voltage: ≤2V
Note 3: The accuracy does not include the error of internal temperature compensation caused by a sensor. The range of the internal temperature compensation sensor is from -10℃ to 50℃ with its compensating error up to 0.5℃.
Note 4: Temperature coefficient: ±0.005% of range per℃ for the temperature ranges from 0℃ to 18℃ and from 28℃ to 50℃.
All our Calibrators are provided one year warrantee by us from the date you make a purchase. An replacement or repairment will be provided by us for free when a faulty is developed within the warrantee.
