Agilent (hp) E4401B spectrum analyzer, 1.5 ghz *options

What is for sale: Agilent (hp) E4401B spectrum analyzer, 1.5 ghz *options

---

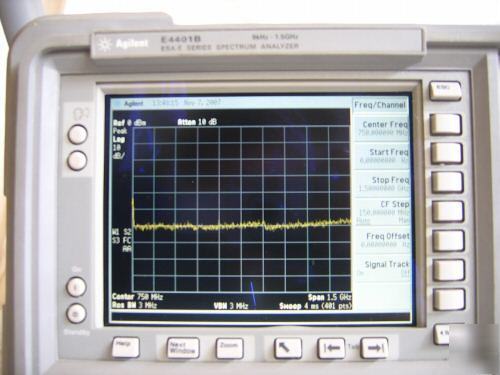

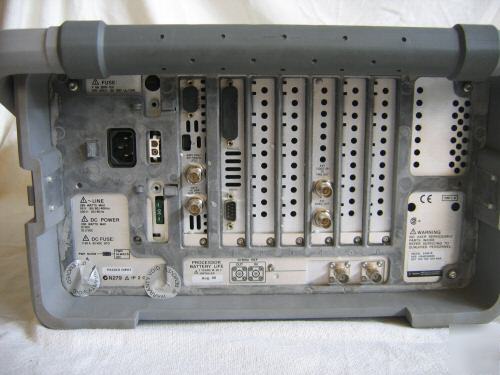

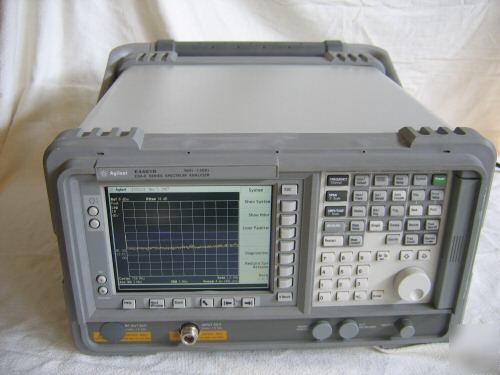

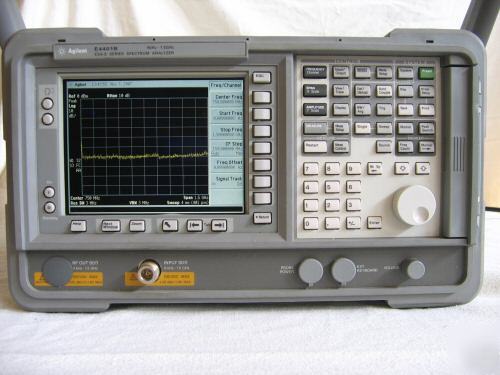

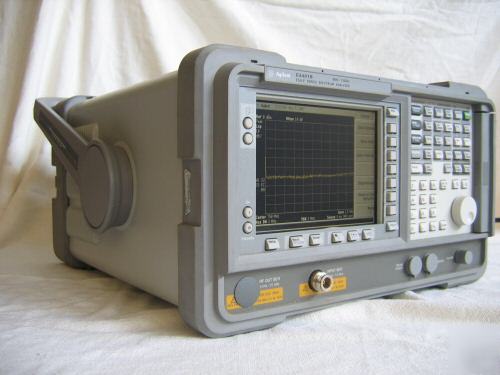

Agilent (HP) E4401B Spectrum Analyzer, 9 kHz - 1.5 GHz (w/ Options)
Description: The Agilent E4401B is a rugged mid-performance spectrum analyzer with a frequency range of 9 kHz to 1.5 GHz. With a wide range of options and measurement personalities, the E4401B's flexible platform design enables R&D, manufacturing, and field service engineers to customize the product to meet specific testing needs and to upgrade the product with new features when required. Available separately, measurement personalities include:
* Noise Figure Measurement
* EDGE Upgrade to GSM/GPRS
The Agilent E4401B offers one button measurement solutions, an easily navigable user interface and high speed performance which allows engineers to spend less time testing and more time designing, building, and trouble shooting components and products. Other features include:
* Segmented sweep for up to 32 discontinuous spans in one sweep
* Dynamic Range: +30 dBm - -166 dBm
* Frequency Range: 9 kHz - 1.5 GHz
* Input Impedance: 50 ohms
* Resolution Bandwidth: 1 kHz - 5 MHz
* Video Bandwidth: 30 Hz - 3 MHz
* One-millisecond RF sweep time, 50 measurements per second
* Rugged lab grade performance for the field
* ±1 dB overall amplitude accuracy
* Optional 1 Hz digital resolution bandwidth filter and preamplifier
* -166 dBm sensitivity with preamp, +13.5 dBm TOI
* Variable sweep (trace points) from 2 to 8192
* Free IntuiLink PC software for screen and data transfer (downloadable from Agilent)
* Working Condition: Tested. Good.

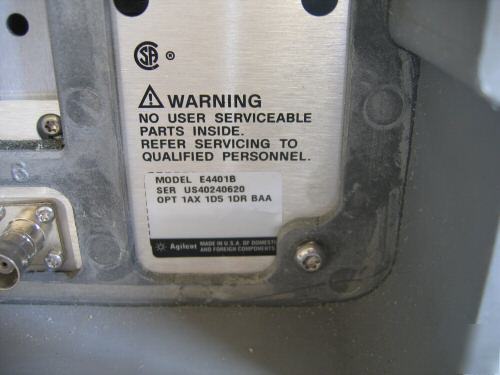

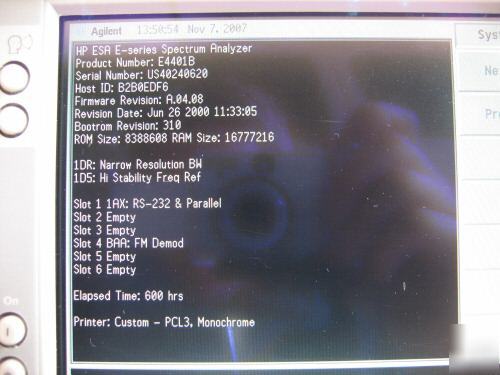

* Other Comments / Notes: Units sold with what you see. Nothing extra is included unless noted in the description. Power cords are not included in the sale. This unit includes the following options:
* 1DR: Narrow Bandwidth Resolution
* Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details).
We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent.
