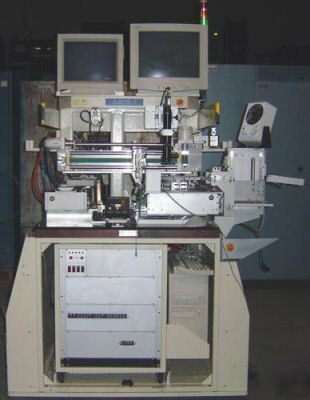

3S Silicon Tech 8015 Automatic Linear Pick & Place
Comes with a manual and what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from 3S and may vary slightly due to upgrades, options or revisions this unit may or may not have.
We have no way to test this unit.
Additional Equipment Includes, But Not Limited To:
* Fostec Light Source (Part Number: 20750, Serial Number: 75456)
* Ion Systems Z-Stat Model 6110A
* Items to change the configuration and more
* High throughput, 0.6 Sec. / Cycle
* Flip chip with back side inspection
The Model 8015 Linear Pick & Place is designed to transfer devices from wafers mounted on filmframes to one of three output options: waffle packs loaded on an X-Y Table, wafer packs loaded in a stack magazine system, or tape & reel.
A wafer magazine is loaded on the Wafer Magazine Handler and a wafer is automatically loaded in the Filmframe Expander.
A computer-controlled optical recognition system locates good devices. These devices are picked by the Linear Pick & Place Arm and placed on the Output Handler, depending on the output option installed, places the device in a waffle pack or Tape & Reel.
Output visual inspection optics are provided to monitor the output operation.
The major systems and assemblies of the Model 8015 Linear Pick & Place are listed below.
Filmframe Magazine Input Handler
Automatically indexes and shuttles Filmframes from a Magazine to the Filmframe Expander
Receives and automatically heats and expands Filmframe. Expander is mounted to an X-Y Table that positions devices under the optics. Returns empty Filmframe to Input Handler.
The Die Ejector pushes the device up from the mylar with a pin array so that it may be picked up by the Pickup Head.
A Linear Assembly with a pickup head that is fitted with a vacuum tip. Transfers devices from Filmframe to Output Handler.
There are two separate optical systems; the first is positioned over the Filmframe and is integrated with the computer-controlled pattern recognition system. The second is under the middle way of Linear Assembly and is for backside inspection only.
Output Configuration 1: Waffle Pack X-Y Table
Empty waffle packs placed on an X-Y Table and are positioned the Linear Assembly to the left.
Output Configuration 2: Waffle Stack Handler
Allows waffle packs to be stacked in a carousel that is mounted to an X-Y Table.
Output Configuration 3: Tape & Reel
A heat-sealed tape & reel packaging system.
Power: 110 VAC, 60 Hz., 15 Amps
Vacuum: 550 mm hg (23") measured at the machine
Compressed Air: 6 bar min., (87 psi)
