Suntec prv-38PF oil filter w/ built in oil saftey valve

What is for sale: Suntec prv-38PF oil filter w/ built in oil saftey valve

---

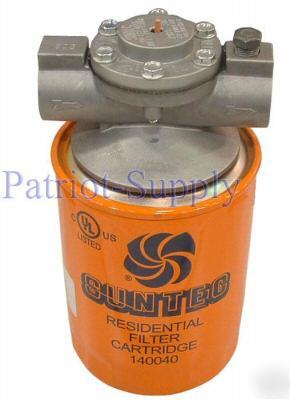

Uni-Saf combination oil safety valve and spin on oil filter suitable for kerosene, No. 1 or No.2 Fuel oil. Maximum inlet pressure 15 PSI. The PRV-38PF is specifically designed for use in gravity feed oil installations up to 10 GPH nozzle capacity on either single pipe of two pipe operation. The oil filter provides 10 micron filtration and the oil safety valve is the same design as the current Suntec PRV-38 which has Suntec’s valve stem indicator, to help troubleshoot problems.
INLET PRESSURE.............................................15 PSI MAX*
TEMPERATURE RANGE.........................................0 to 160F
FUEL.......................................................NO. 2 OR LIGHTER
MAXIMUM FLOW......................................................45 GPH
MAXIMUM FIRING RATE...........................................10 GPH
MICRON RATING..............................................10 MICRONS
While the valve portion of this product is rated to 40 PSI, the F10 Filter Cartridge, and hence the PRV-38PF product, is only rated to 15 PSI MAX!
Oil under pressure or vacuum is supplied to the PRV valve inlet port. Vacuum is required at the PRV valve outlet port to open it and allow oil flow. This vacuum is provided by the fuel pump upon burner startup. A leak in the system preventing vacuum from being exerted at the valve outlet port will prevent oil flow.
Order Suntec F-10 140040 for replacement spin on filter.
