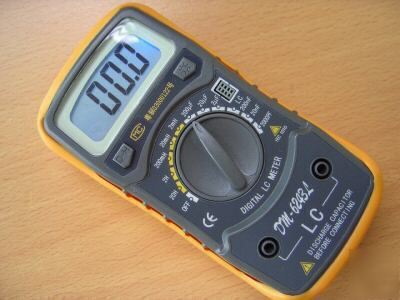

New digital 20H lc inductance, capacitance meter,lab

What is for sale: New digital 20H lc inductance, capacitance meter,lab

---

"Digital Inductance & Capacitance
Lab Research, Manufacturing, Experiment, Home / DIY Hobbies Measurements "
HIGH ACCURACY, RESOLUTION & RELIABILITY WITH WIDE MEASUREMENT RANGE !!!
STYLIST LOOK, COMPACT & HANDY DESIGN GOOD
. Wide Selectable Capacitance / Inductance Measuring Range :
. Better for the following applications :
- Capacitor / Inductance characteristic analysis;
- Selection of desired capacitor / Coil;
- Test Unknown capacitor / Coil ;
- Finding the "matched" capacitors / Coils for circuit design
. Employs LSI technology, auto turns zero, overflow display functions.
. High Accuracy and resolution for precise measurments
. Low power consumption & low battery indication
. Protective case reduces to drop damage
. 6 Capacitance Measuring Ranges : 1pF to 200uF
Range 1 to 5 : 2000pF / 20nF / 200nF / 2uF / 20uF, +/-1.5%, + 5 digits;
Range 6 : 200uF, +/-2.5% , + 5 digits;
. 5 Inductance Measuring Ranges :
Range 1 to 3 : 2mH / 20mH / 200mH, +/-2%, + 5digits;
Range 4 to 5 : 2H / 20H, +/- 2.5%, + 5 digits;
. Max Display : "1999", 3 1/2 Digits, Backlight control
. Power : 9V DC battery ( 6F22 ) inside
. Low battery indication on display
. Size : 145 x 39 x 74 mm ( Includes protection case )
. Operating Temperature / Humidity : 0 -40C, RH<70%
. Accessories : Instruction manual, test leads and protective case
QUANTITY DISCOUNT AVAILABLE !!!
If the item damaged upon received, please inform immediately by e-mail within 5 days. After the investigation, we decide to the replacement.
Backlight color may vary which subjects to the availability
- Regret not accept Personal Check; US local Postal Order.
Don’t hesitate to ask if you have any inquiry.
