Durham geo dual range bladder pump controlller~qed~

What is for sale: Durham geo dual range bladder pump controlller~qed~

---

The Innovative Sampling Systems Dual Range Bladder Pump Controller provides a bladder pump controller capable of purging and sampling wells with a head of up to 200 feet. The custom designed precision electronic timers allow accurate timing of each cycle component. The use of two separate pressure regulator circuits allow close control of the applied air pressure from 2 to 100 psi. Accessories are provided for charging the internal battery and connection to an external compressed air source. The controller can be used for both conventional and low flow sampling from monitoring wells.
Regulators: Adjustable 2-50 psig and 5-100 psig with range switch
Gauges: 0-60, 0-100 and 0-160 psig, 1 ½-in Bourdon type
Solenoid: Air assisted pilot, 0-150 psig inlet and operating pressure, 12 volt 2 watt solenoid
Filter: Internal, 5 micron, 18 scfm flow at 100 psig, self draining
Inlet: 1/8-in npt with adapter for ¼-in npt and “M” type quick connect
Outlet: ¼-in OD tube push to connect fitting
Fittings: Internal -push to connect and barb type
Controller - Electronic timers for pressure (on) and vent (off) cycles, adjustable from 0.1 to 10 sec ± 10%, repeat accuracy ±0.1% for on and off times. Timer status provided by dual color (red/green) LED indicator
Battery Status - Front panel push button operates a comparator to provide LED indication of voltage, Green 11 to 13.6 volts, Yellow below 11 or above 13.6 volts ±5% both ranges. Circuit also connected when power switch placed in “Charge” position and when a charger is connected to the front panel socket with the “Power Switch” in the “Off” position.
Battery -12 volt lead acid gel cell type with a rated output of 4.5 A.H.

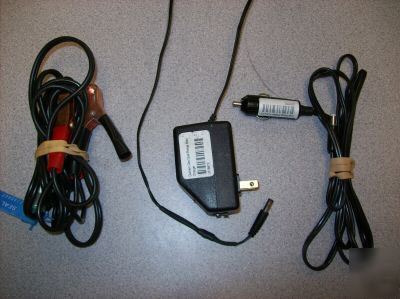

Charger - External 12 volt DC output at 500 ma, 115 volt 60 Hz input, with 2.3 mm coaxial plug
Fuse - 1 ¼-in type, 2 amp maximum
Power Cord - 4-ft with 2.3 mm coaxial plug connector and auto accessory fused plug with LED on indicator

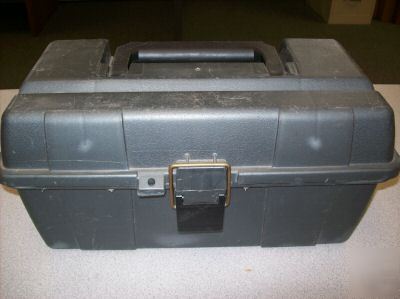

Case - Polypropylene molded 2 piece hinged and lockable case with fold down handle. 15 3/4-in wide x 9-in deep x 7.75-in high

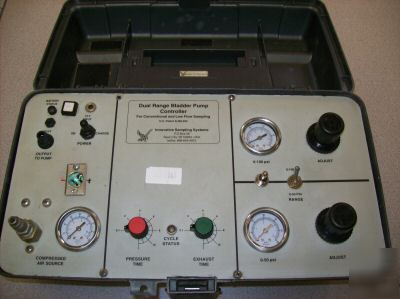

Front Panel - Potentiometers and power switches are protected by water resistant boots. All electronics are potted and secured to the front panel
This controller is in good working condition. This unit is 100% working and your satisfaction is guaranteed.
