Boc edwards htu-108D chiller, used in amat endura tool

What is for sale: Boc edwards htu-108D chiller, used in amat endura tool

---

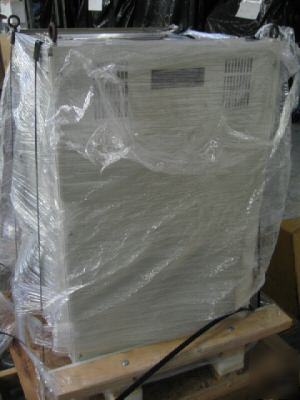

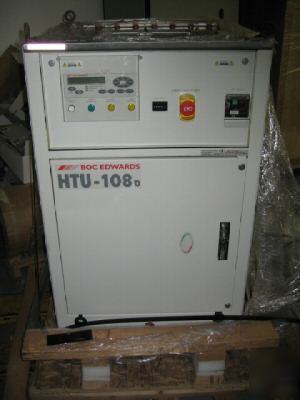

BOC Edwards HTU-108D Chiller, used in AMAT ENDURA tool
HTU-108 series is a recirculating water cooler designed to meet or exceed the specific cooling requirements for Applied Materials ENDURA process tools, e.g. CL and SL tools.
The cooling capacity is 100 kW. Other specifications for the heat exchanger are:
* Ambient temperature range: 10°C to 40°C (50°F to 104°F)
* Maximum ambient relative humidity: 80%, up to 31°C (88°F)
* Derate linearly to 50% at 40°C (104°F)

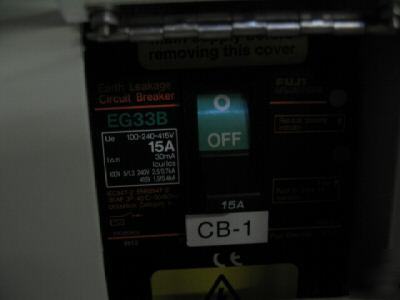

* Required main power overcurrent protection: 15 Amps
* Required main power earth leakage protection: trip at 30 mA
* Electrical supply voltage (nominal): 200/208 VAC
* Electrical supply voltage (min/max): 177/228 VAC
* Electrical supply frequency: 50/60 Hz
* Electrical supply, number of phases: 3
* Supply water temperature range: 15°C to 22°C (59°F to 72°F)

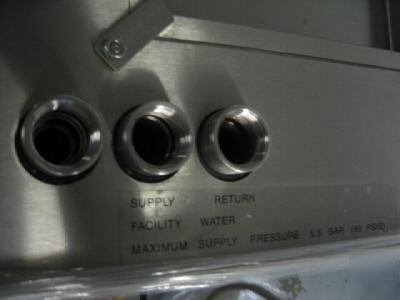

* Supply water pressure range: 3.45 to 5.5 bar (50 to 80 psi)
* Supply water flow range: 30 to 76 lpm (8 to 20 gpm)
* 108 dimensions: 610mm x 686mm x 1016mm
* Total weight (dry): 182kg (400 lbs.)
* Total weight (wet): 288kg (633 lbs.)
* Maximum reservoir capacity: 105.8 Liters (28 U.S. gallons)
